Stainless Steel Production Facility in the Middle East Region

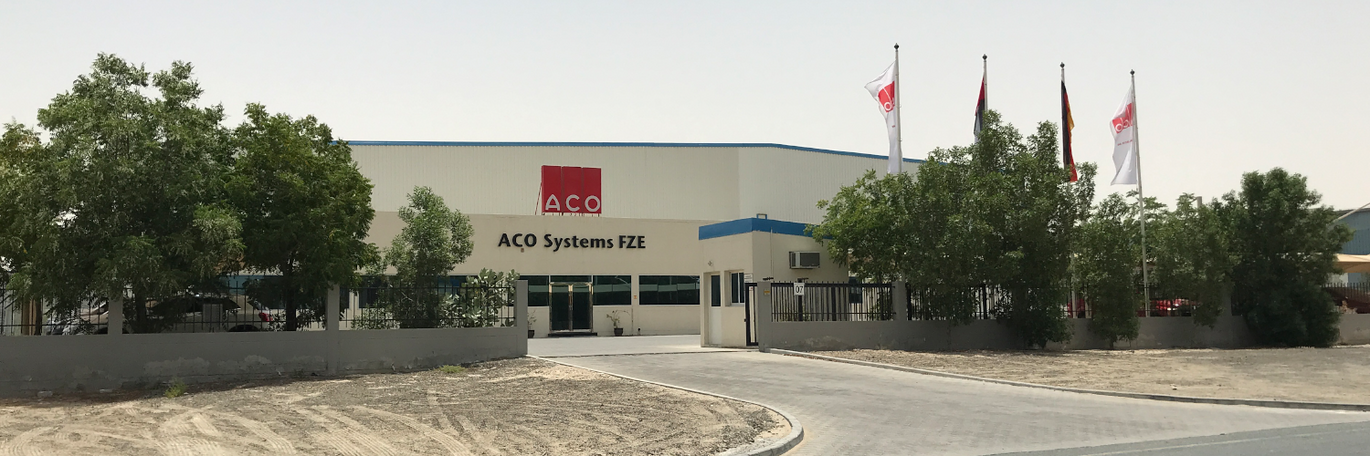

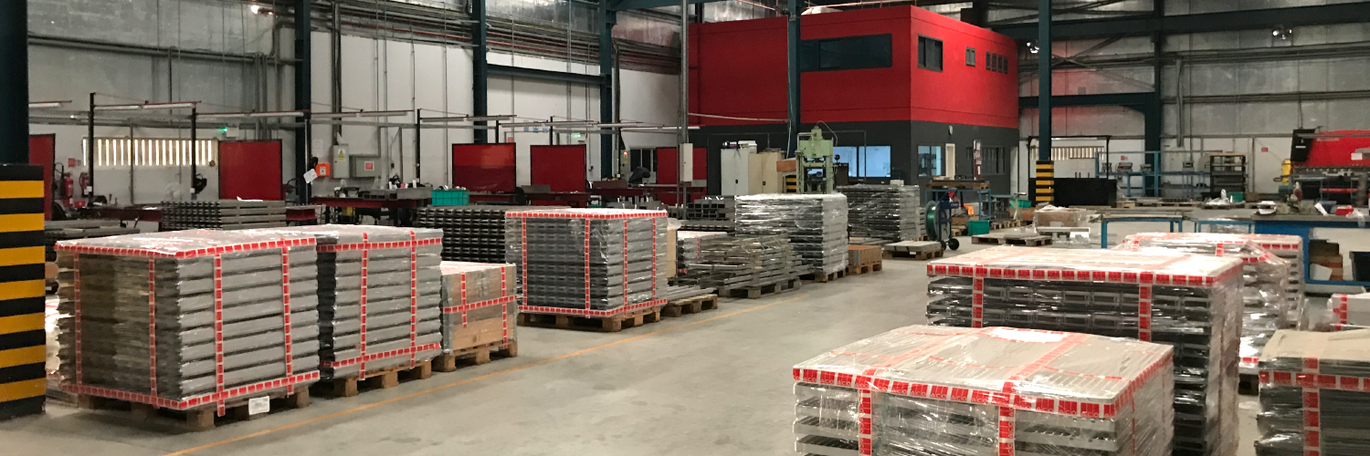

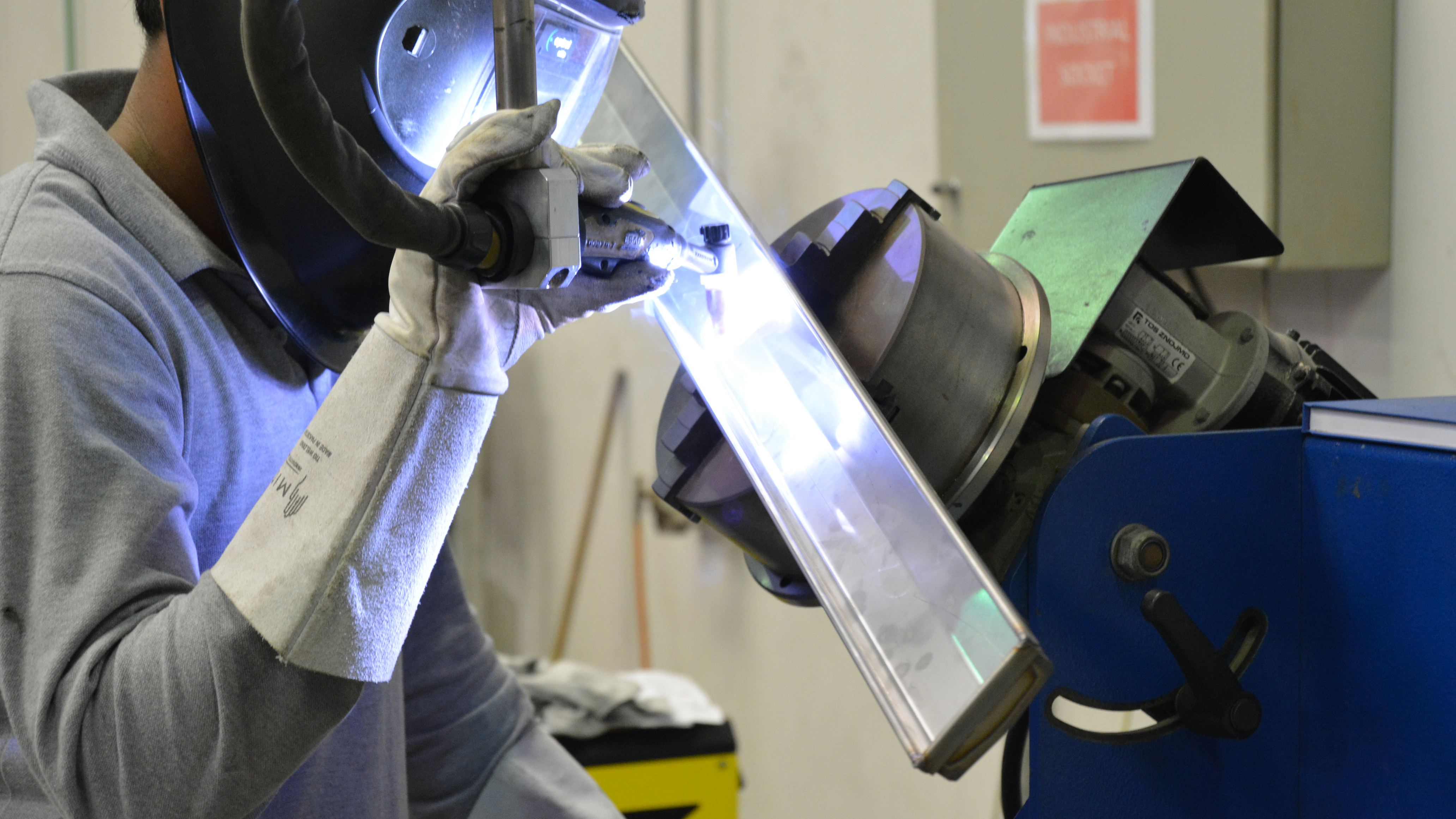

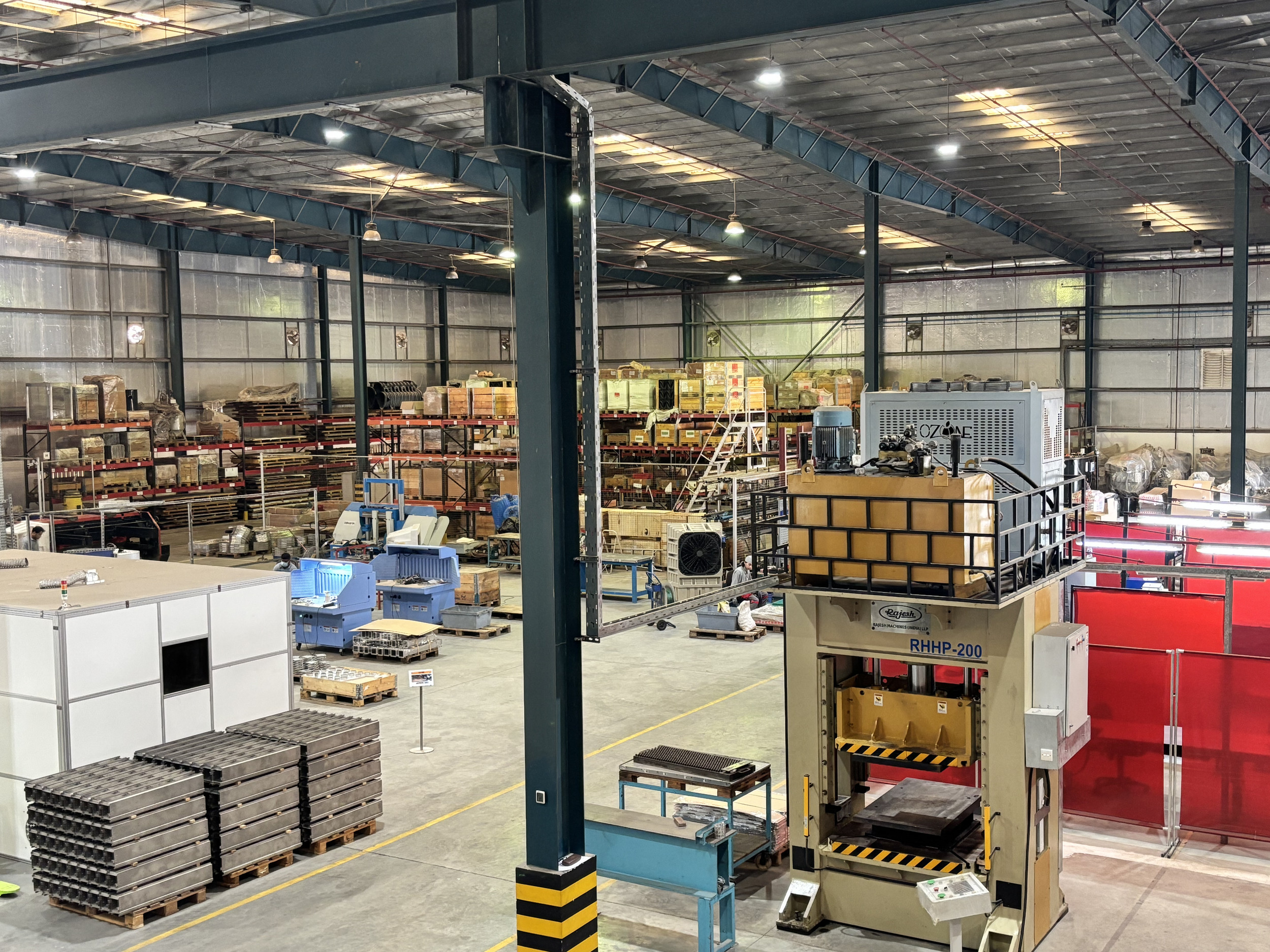

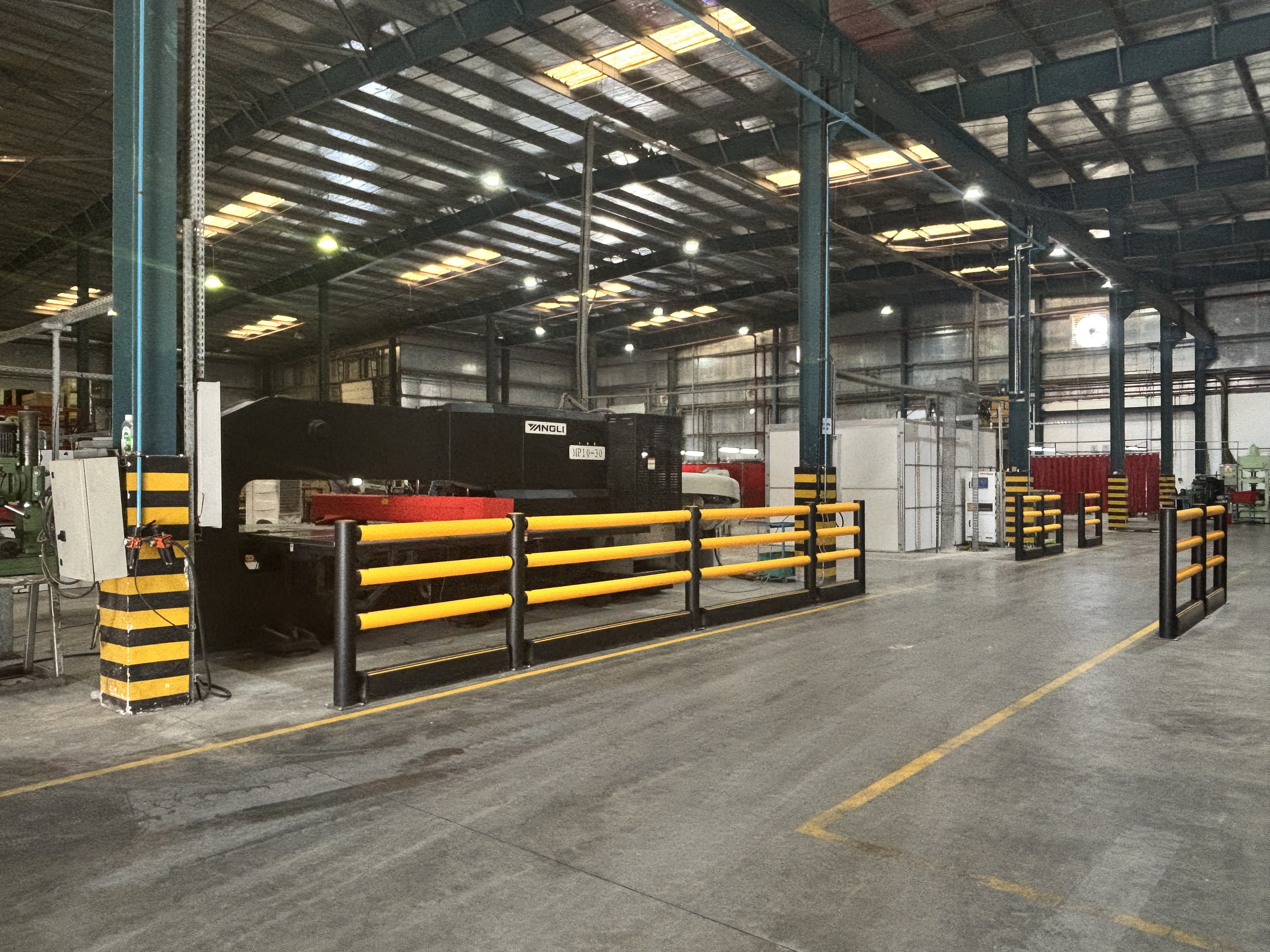

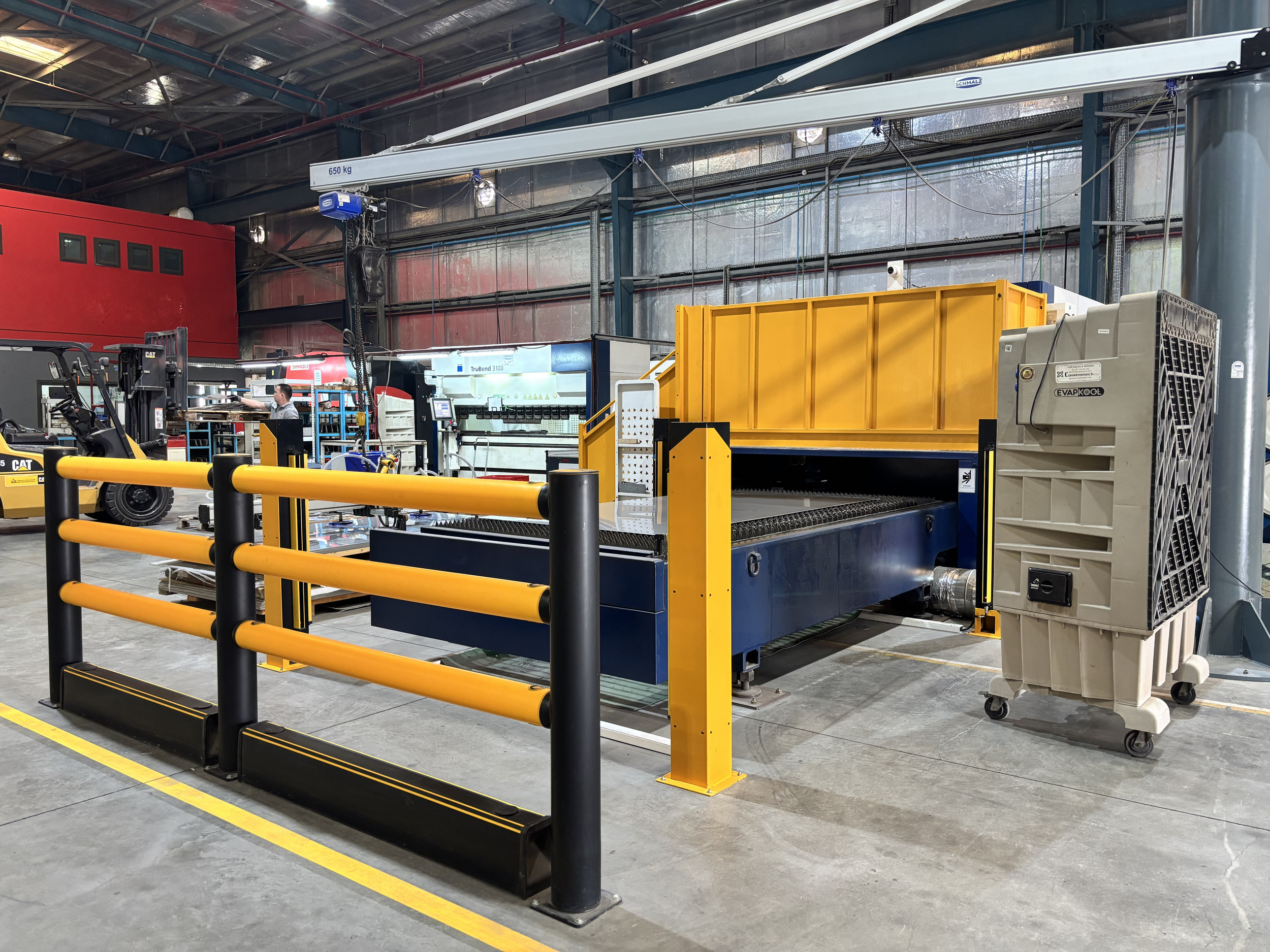

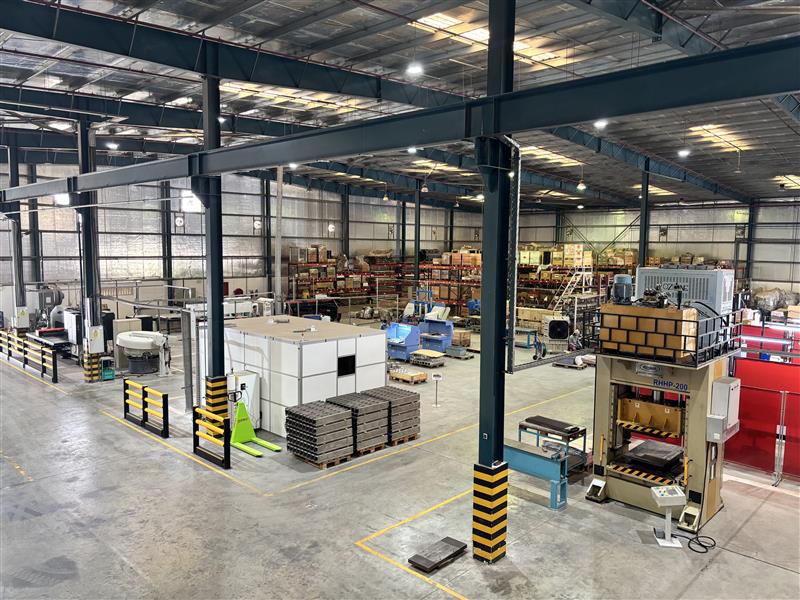

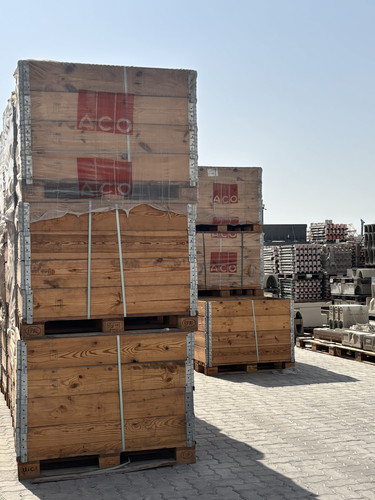

Established in 2006, ACO Systems FZE , Dubai provides the highest levels of support and service to over 20 countries throughout the Middle East and parts of South Asia and Africa. As part of the worldwide ACO Group, we are world leaders in the manufacture and supply of various internal and external drainage systems since 1946. With a 10'000 sqm manufacturing facility and a team of more than 50 employees, we specialize in stainless steel drainage products with an emphasis on bespoken and hygienic drainage solutions.

ACO Systems FZE Company Profile

ACO Drainage solutions and building materials made of stainless steel

Standard building material and drainage solutions:

  • Shower channels and floor drains,
  • Access covers,
  • Under sink grease trap

Bespoken building material and drainage solutions:

  • Shower channels and floor drains,

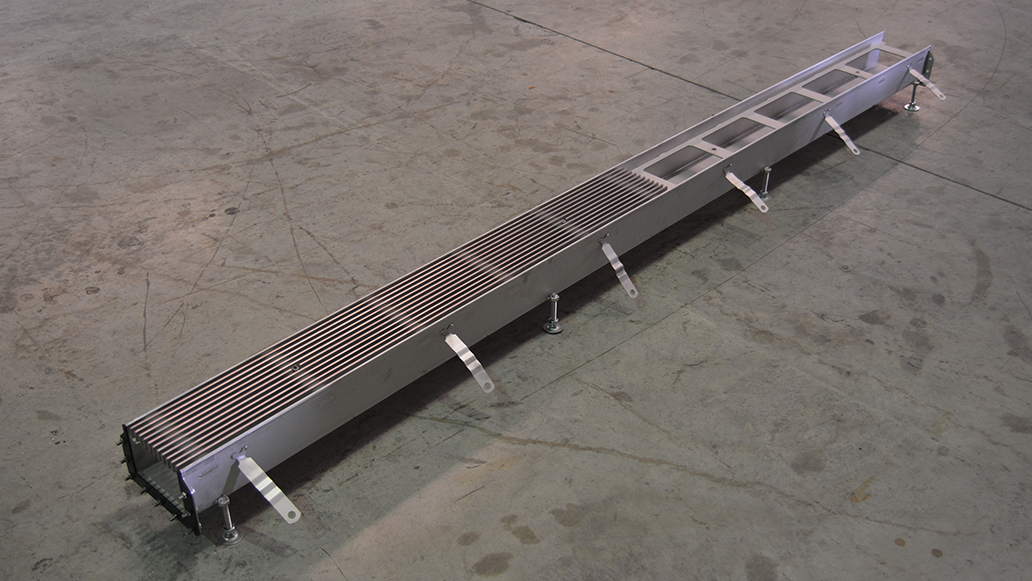

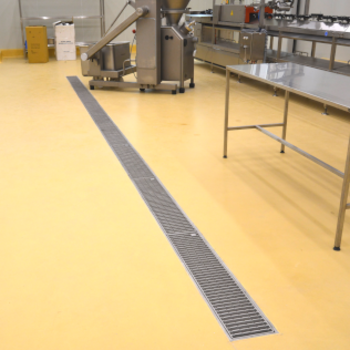

  • Channels with gratings,
  • Gullies with covers or gratings,
  • Access covers,
  • Rain gutters,
  • Roof drains

Special projects - bespoken solutions for buildings:

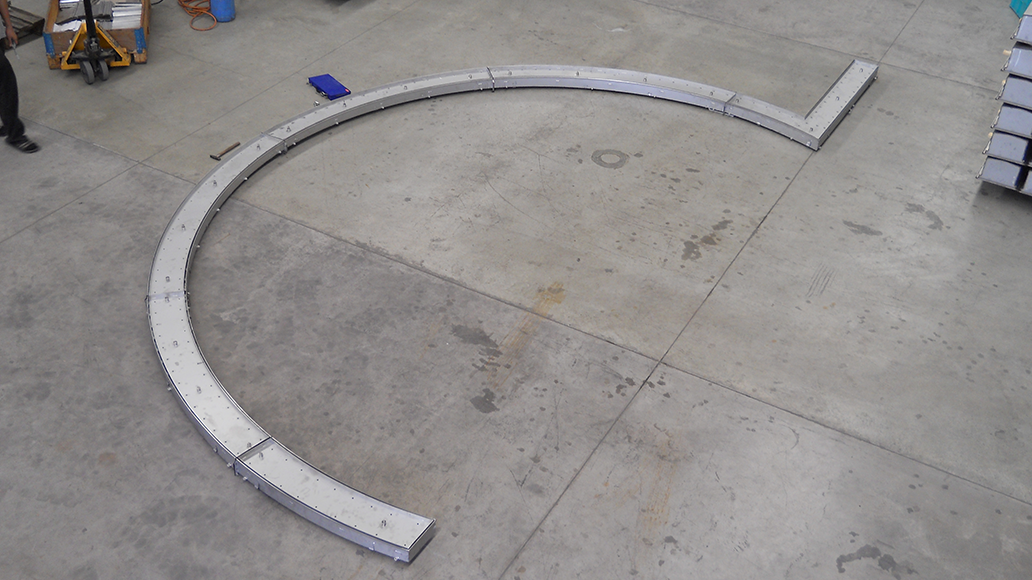

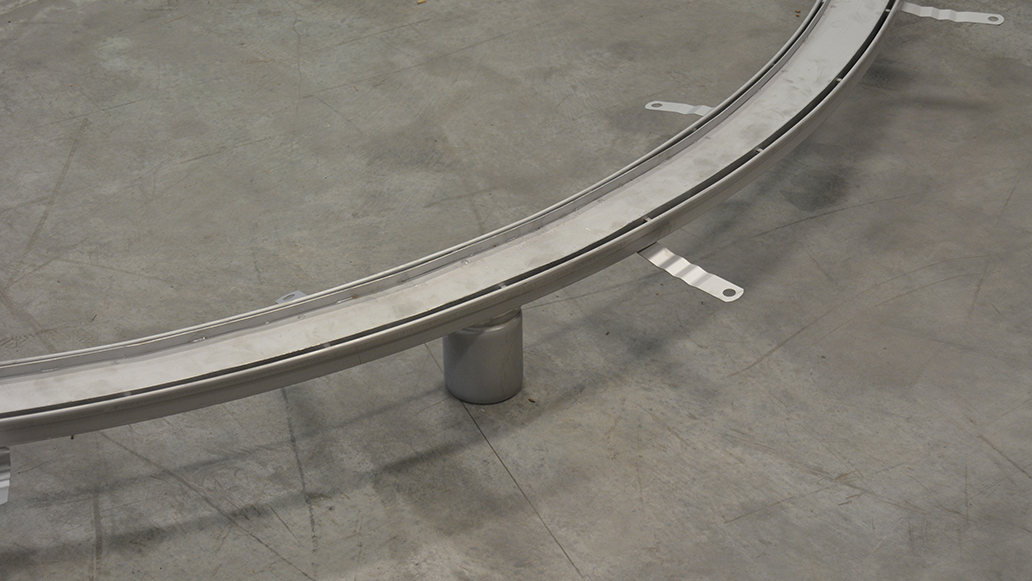

  • Round shower channels,

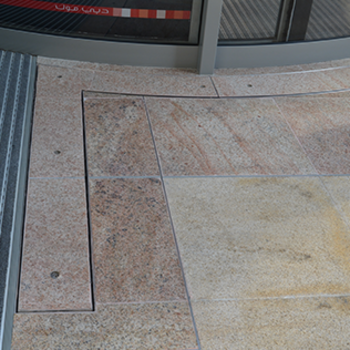

  • Channels with height-adjustable tile-type covers,
  • Rain gutters,
  • LED panels,
  • Shelves

Standard solutions for external drainage:

  • Brickslot elements for the ACO Multiline channels and N-Channels,
  • Gratings for ACO Multiline channels,
  • Access covers

Bespoken external drainage solutions:

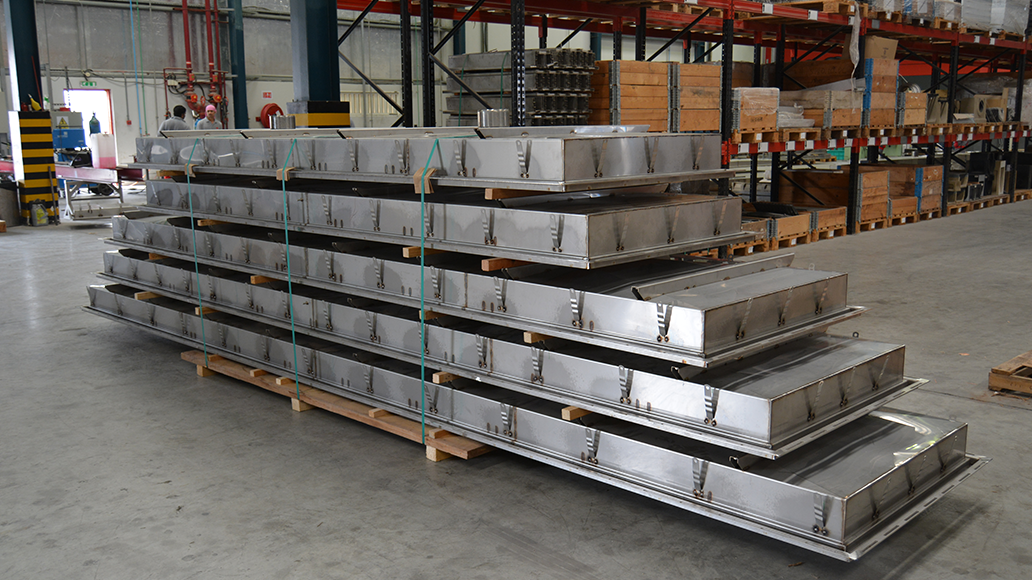

  • Channels with gratings

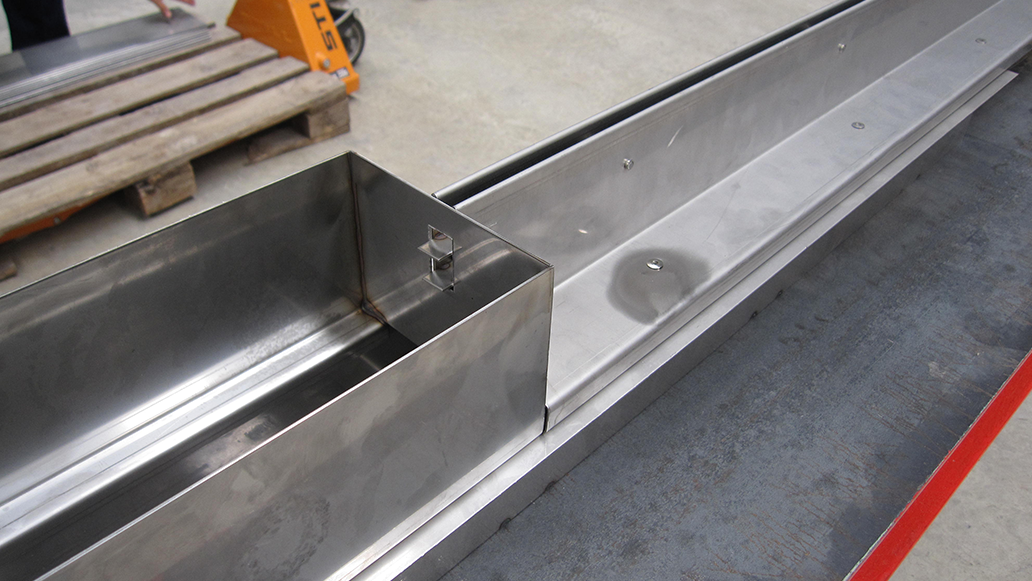

  • Brickslot channels with revision units
  • Access covers

Special projects - bespoken external drainage solutions:

  • Channels and gratings,
  • Frames and gratings,
  • Brickslot elements and brickslot channels
  • Floor drains for heavy duty,
  • Bridge drains,
  • Point drainage for highways

Made in U.A.E Products

ACO Building Drainage Products

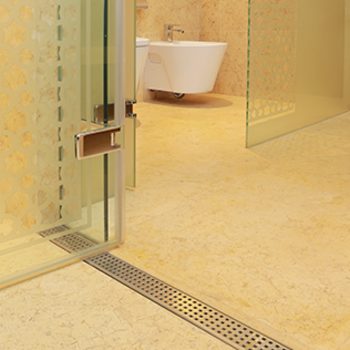

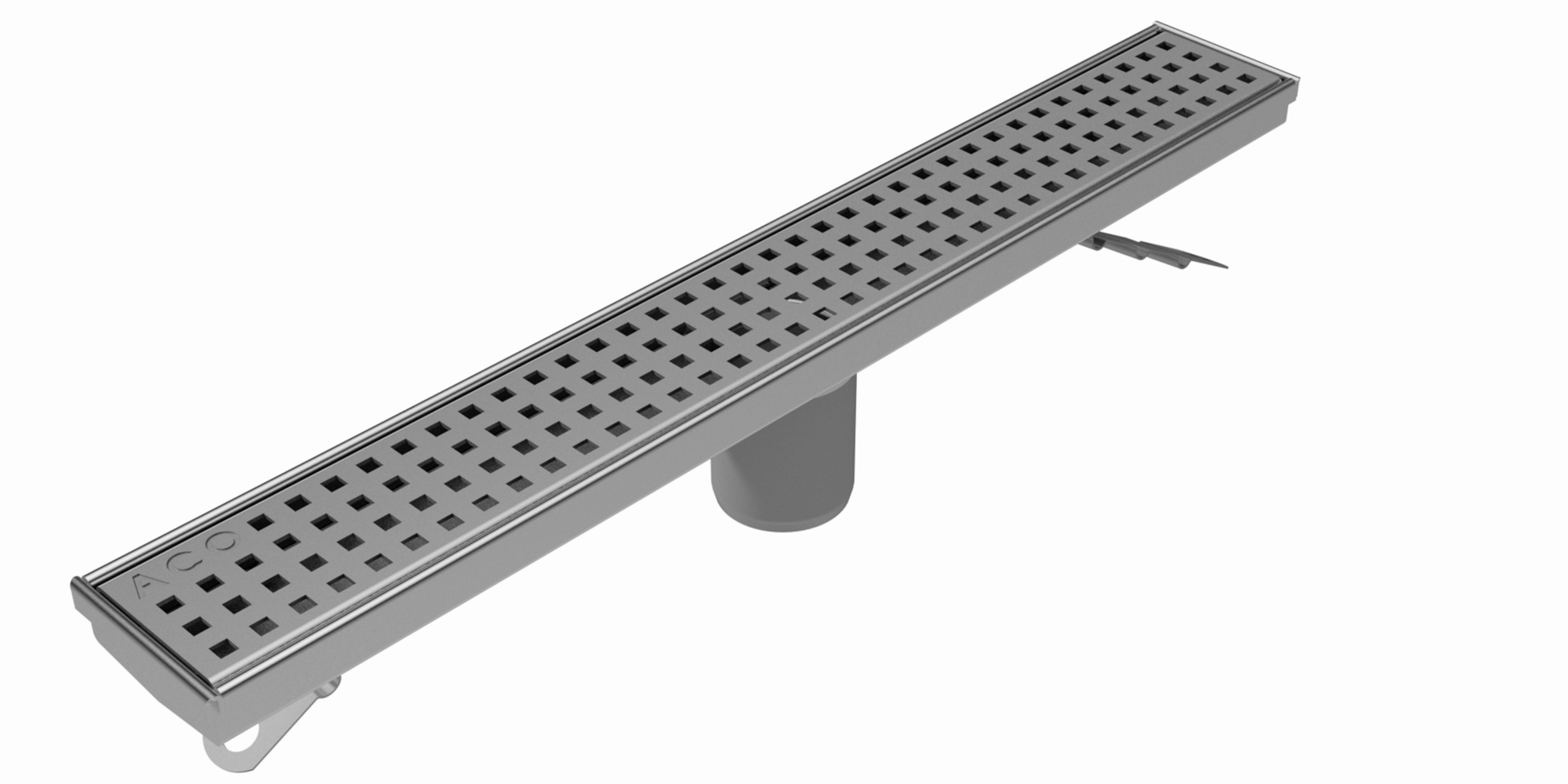

ACO Standard Shower Channels

with "Quadrato" design grating
  • Mirror or brushed finish grating
  • Stainless steel AISI304 or AISI316
  • Center outlet D50, off-center possible
  • Standard width: 70mm
  • Standard lengths: 500mm, 600mm, 700mm, 800mm, 1000mm and 1200mm

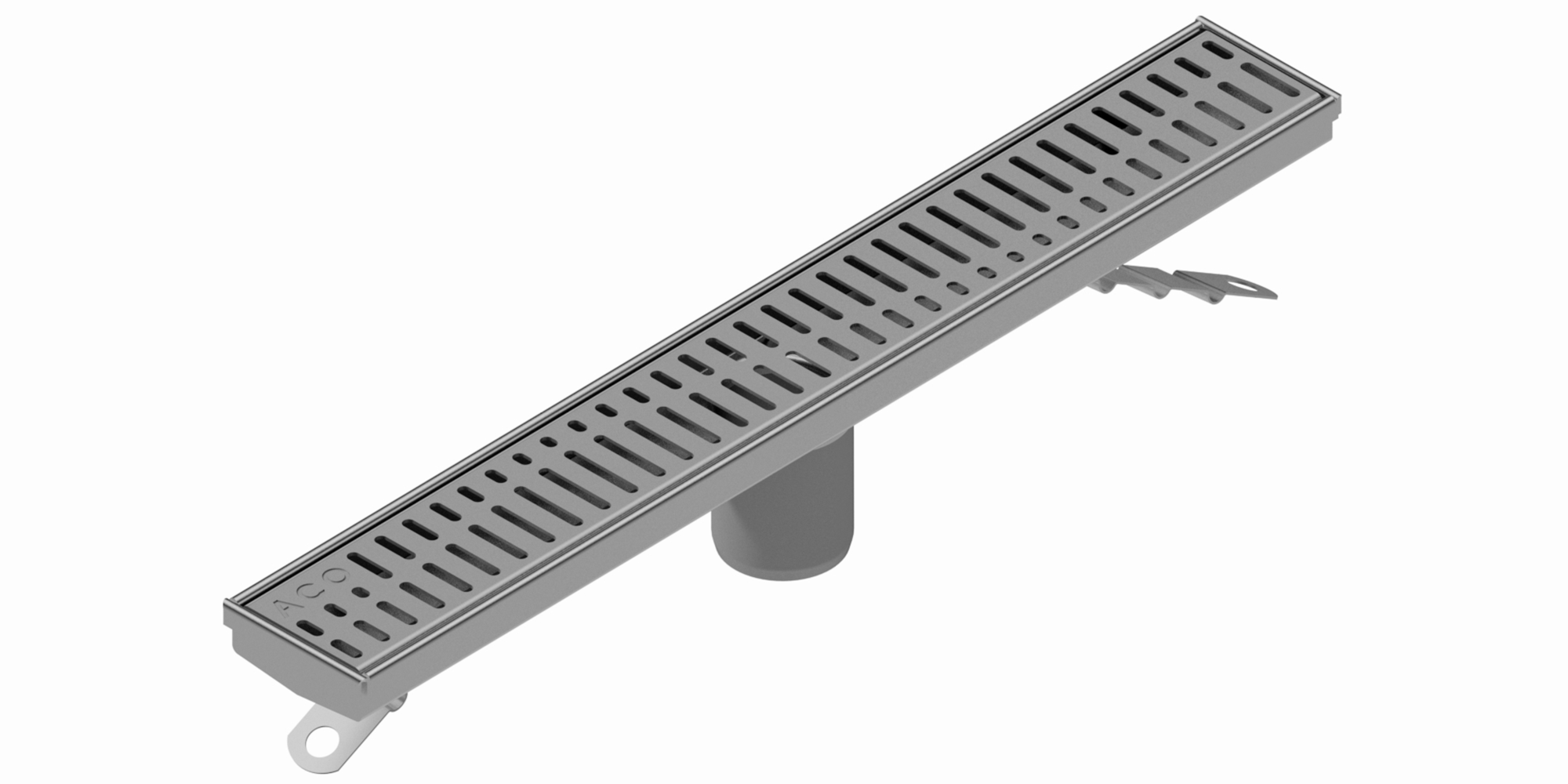

with "Wave" design grating
  • Mirror or brushed finish grating
  • Stainless steel AISI304 or AISI316
  • Center outlet D50, off-center possible
  • Standard width: 70mm
  • Standard lengths: 500mm, 600mm, 700mm, 800mm, 1000mm and 1200mm
with "Tile-Type" design grating
  • Tile-type grating
  • Stainless steel AISI304 or AISI316
  • Center outlet D50, off-center possible
  • Standard width: 70mm
  • Standard lengths: 500mm, 600mm, 700mm, 800mm, 1000mm and 1200mm

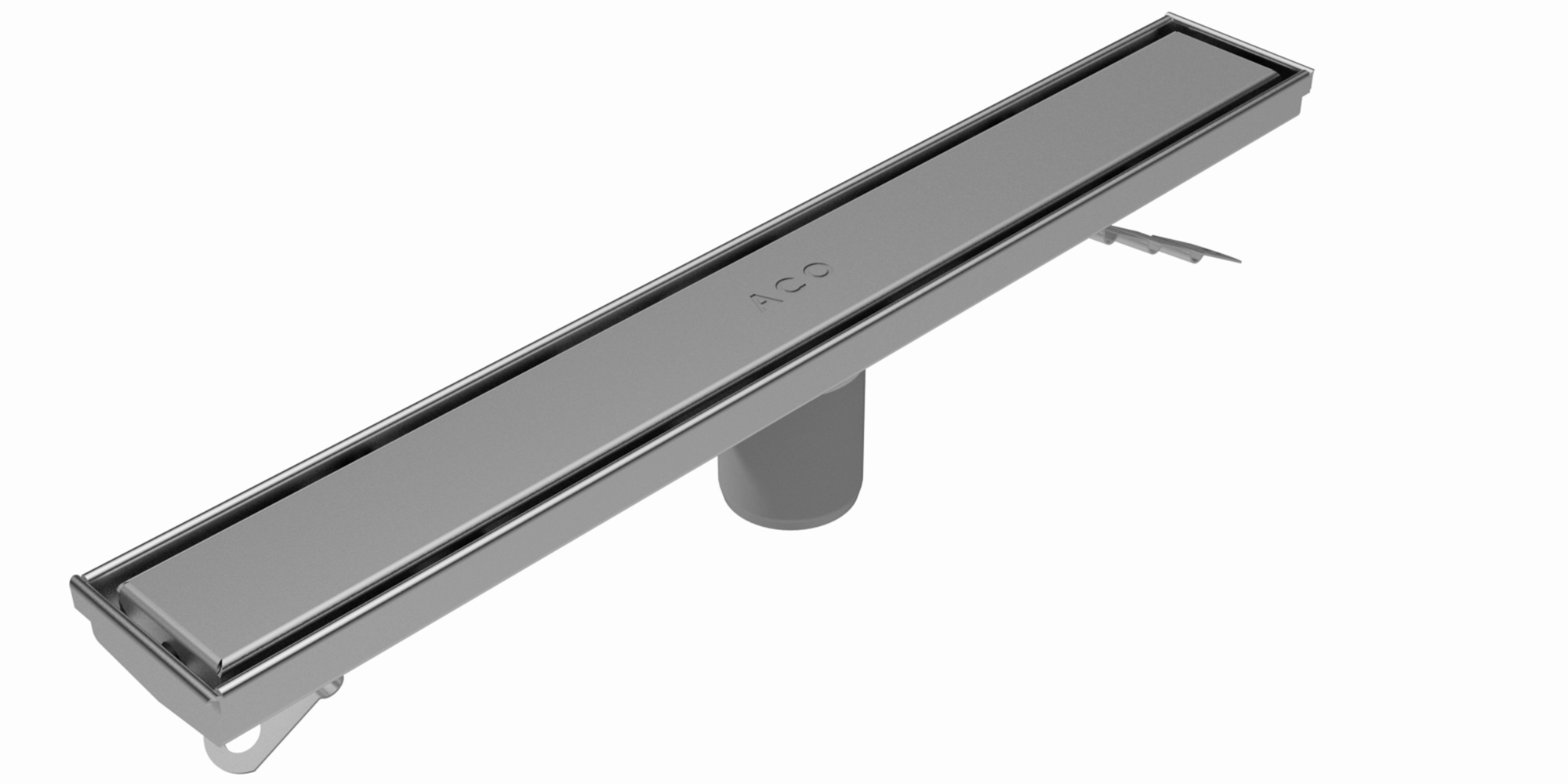

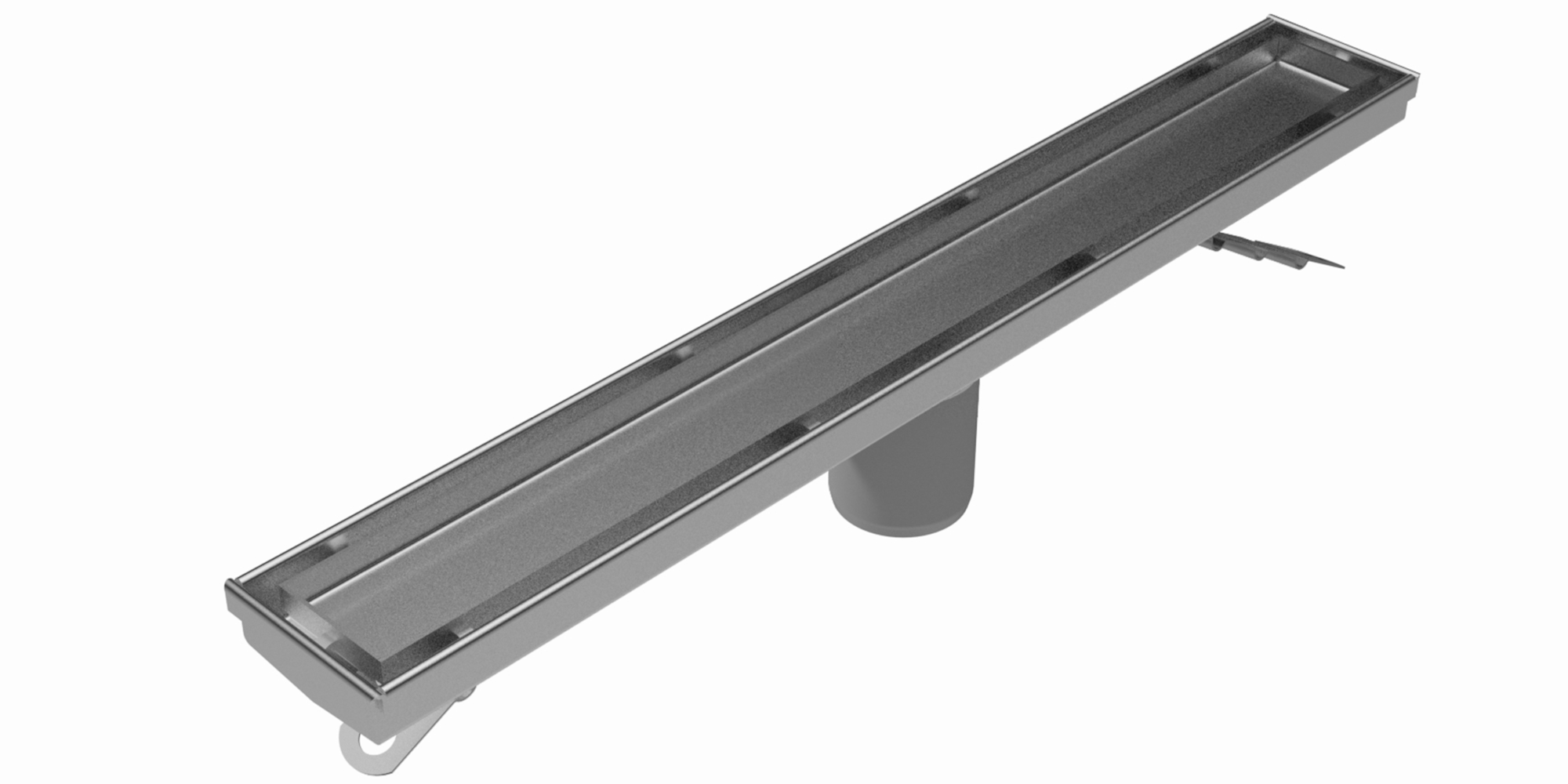

with "Solid" design grating
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • Center outlet D50, off-center possible
  • Standard width: 70mm
  • Standard lengths: 500mm, 600mm, 700mm, 800mm, 1000mm and 1200mm

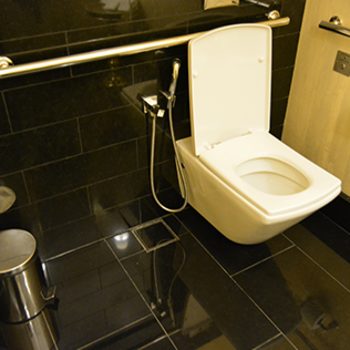

ACO Standard Floor Drains

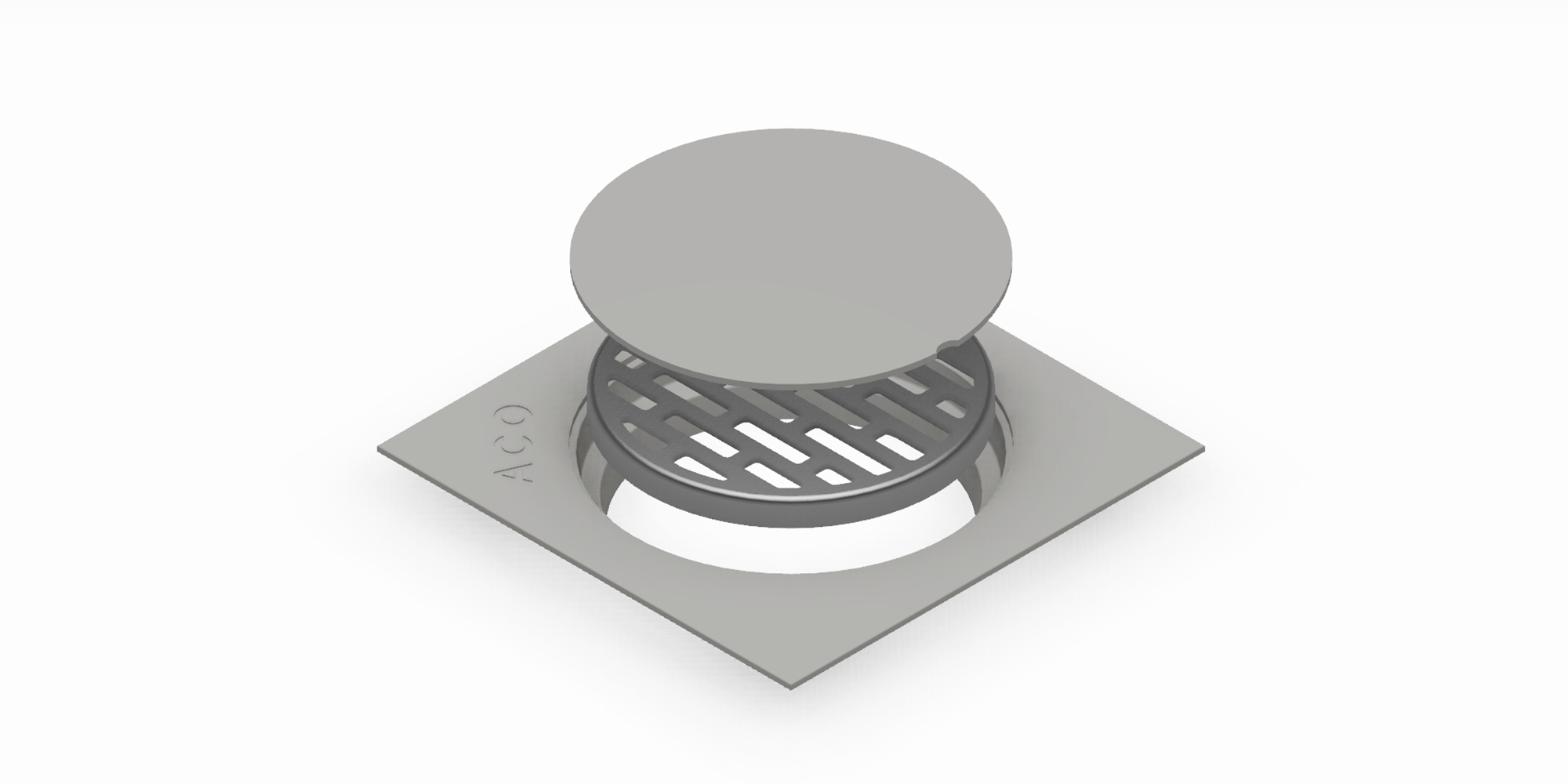

ACO Universal Floor Drain
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • outlet D100
  • for tile size 15x15cm or 20x20cm
  • incl. loose grating and loose cover

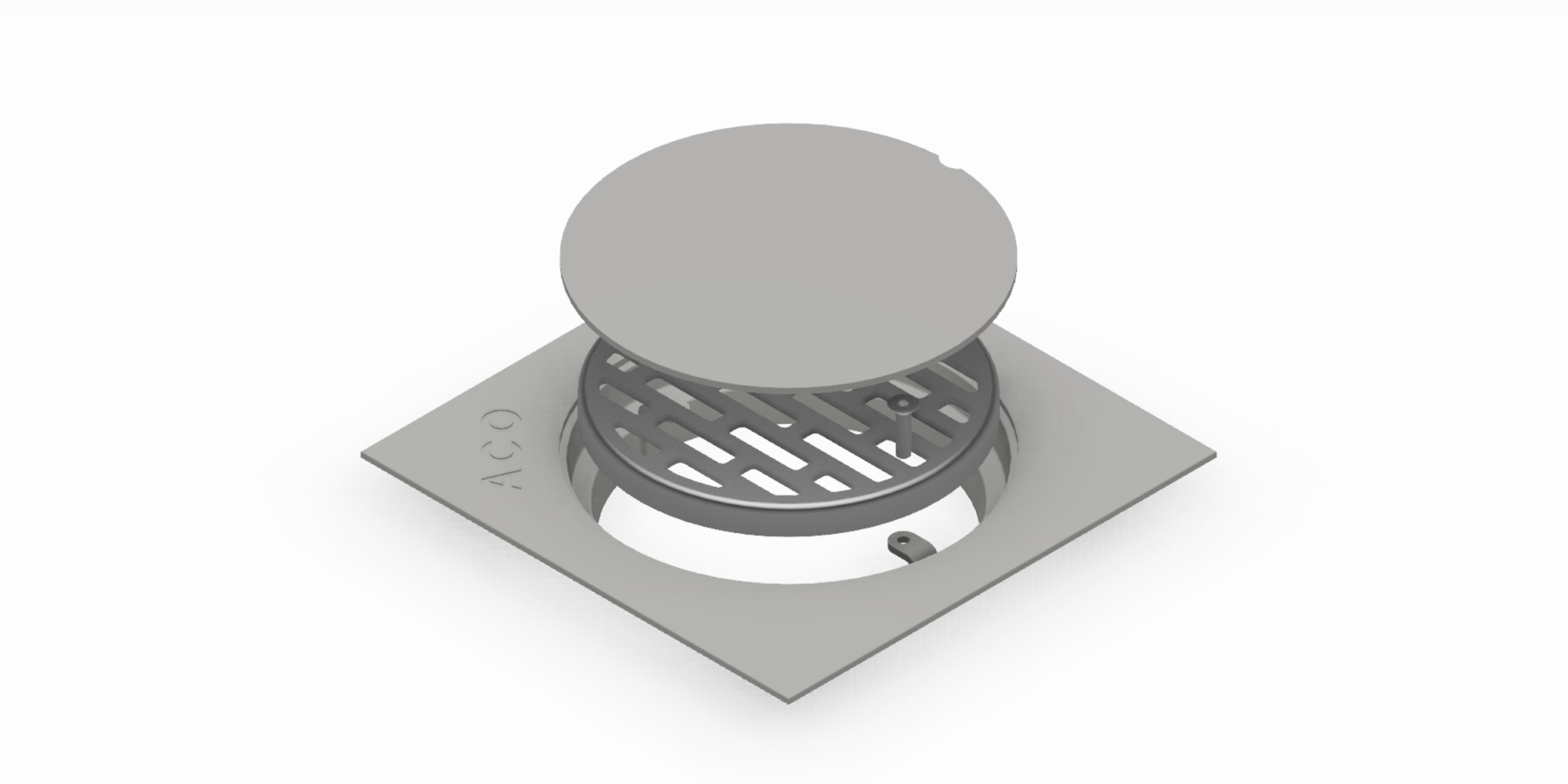

ACO Universal Floor Drain - with looked grating & loose cover
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • outlet D100
  • for tile size 15x15cm or 20x20cm
  • incl. looked grating and loose cover

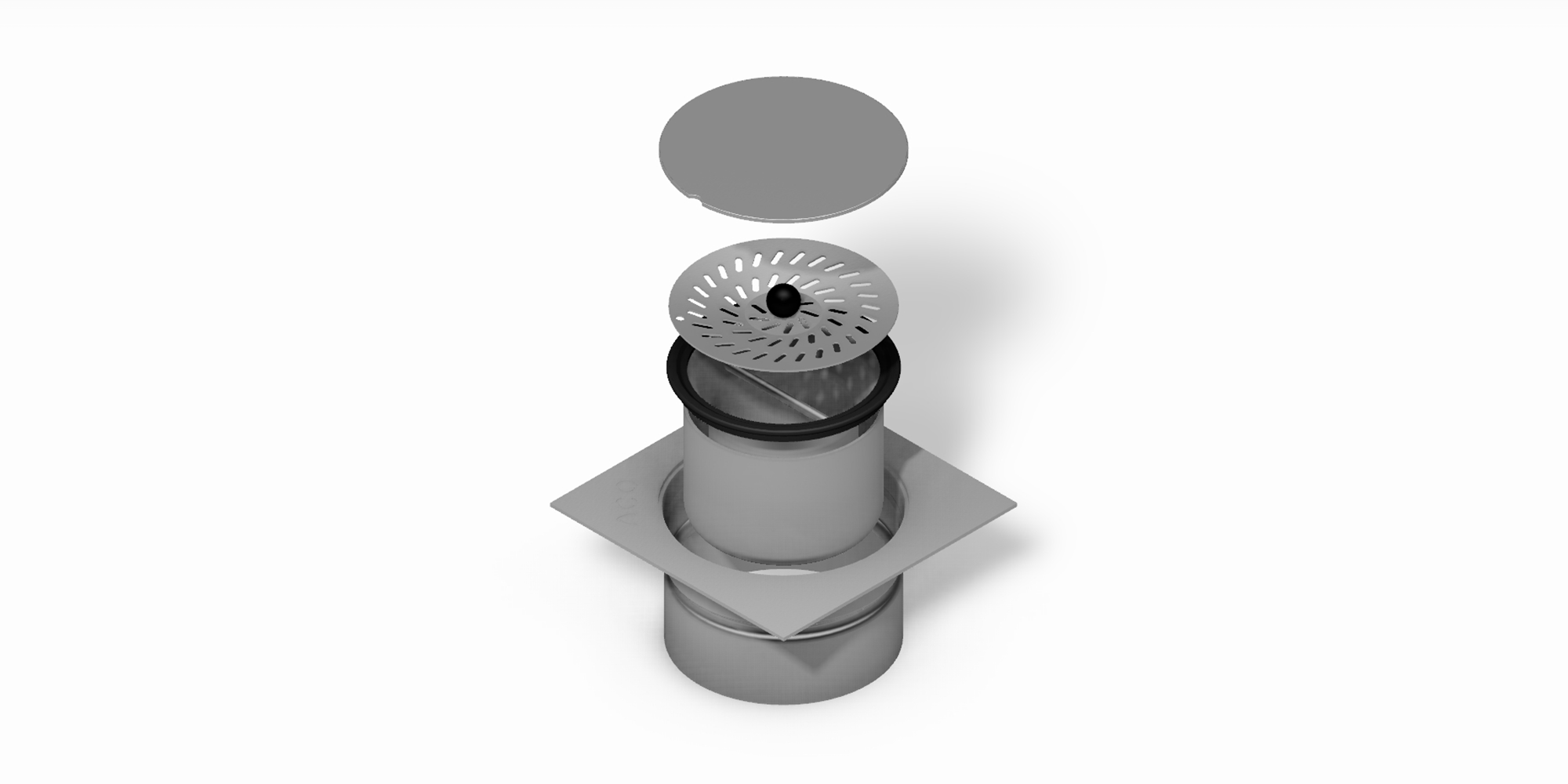

ACO Universal Floor Drain with foul air trap
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • Outlet D100
  • for tile size 15x15cm
  • incl. FAT, sieve and loose cover

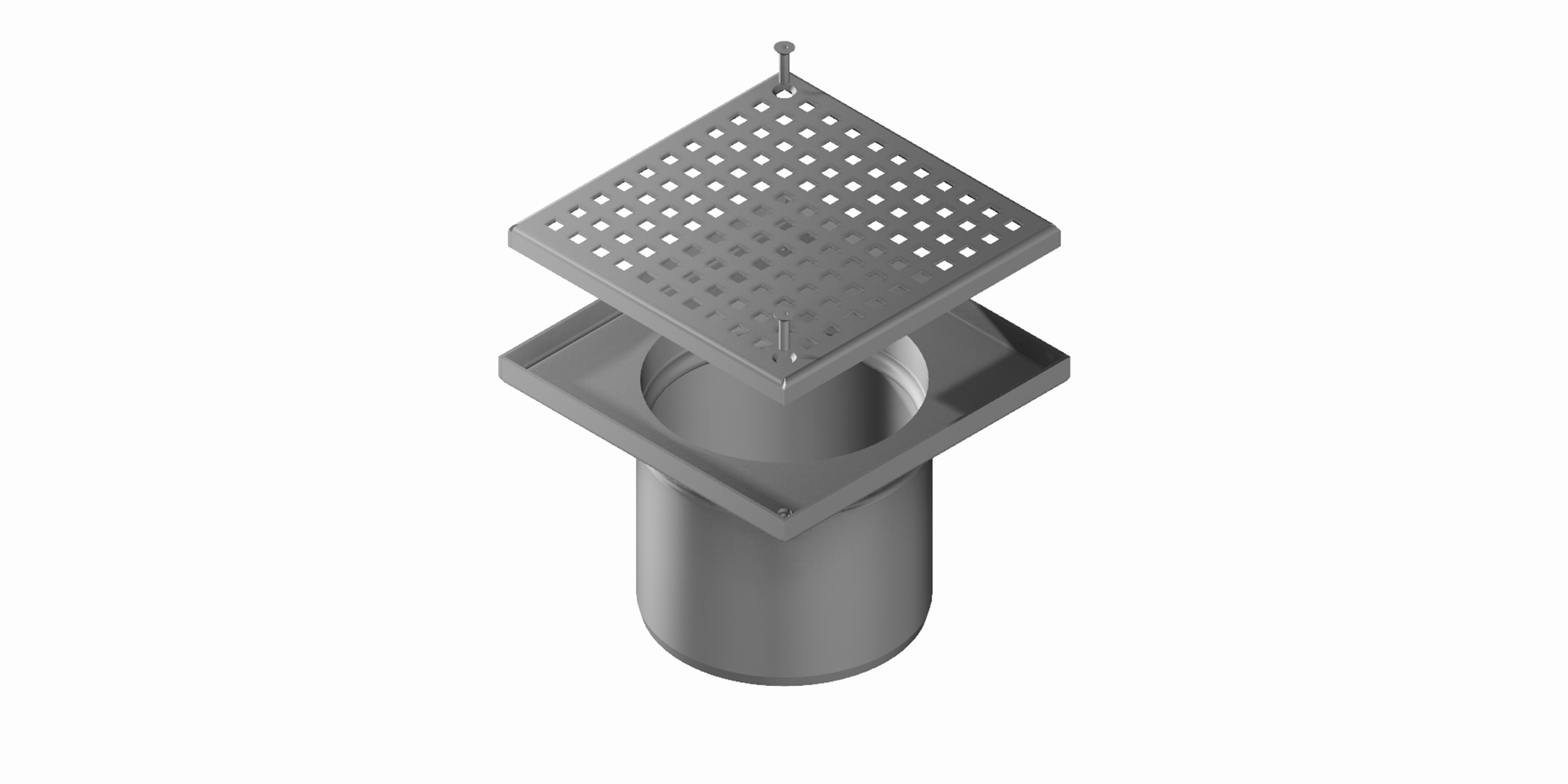

ACO Floor Drain with perforated grating
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • Size 75x75mm, outlet D50
  • Size 100x100mm, outlet D50 or D75
  • Size 150x150mm, outlet D110

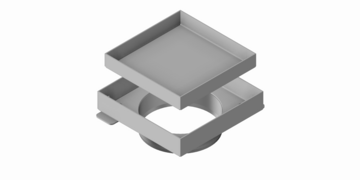

ACO Floor Drain "tile-type" with different dimensions
  • Stainless steel AISI304 or AISI316
  • Size: 100x100mm & outlet D50
  • Size: 100x100mm & outlet D75
  • Size: 150x150mm & outlet D110

For more information send E-mail to info@aco.ae or get in contact with our Sales Manager in your region.


ACO External Drainage Products

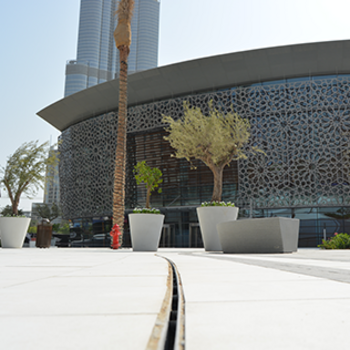

ACO Standard Brickslot Elements for ACO Multiline or ACO Euroline channels

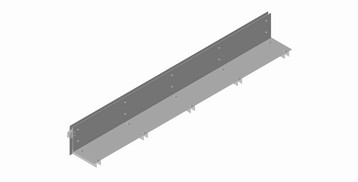

ACO Brickslot Elements with side slot
  • Stainless steel AISI304 or AISI316
  • Standard length: 500 mm and 1000 mm
  • Standard brick sitting height: 50 mm, 70 mm or 105 mm
  • Load Class B125, C250 and D400

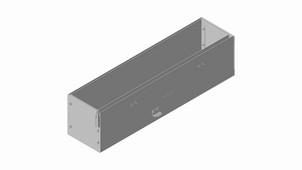

ACO Brickslot Revision Element with side slot
  • Stainless steel AISI304 or AISI316
  • Standard length: 500mm
  • Standard brick sitting height: 50 mm, 70 mm or 105 mm
  • Load Class B125, C250 and D400

For more information send E-mail to info@aco.ae or get in contact with our Sales Manager in your region.


ACO Building Materials

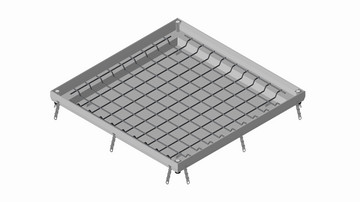

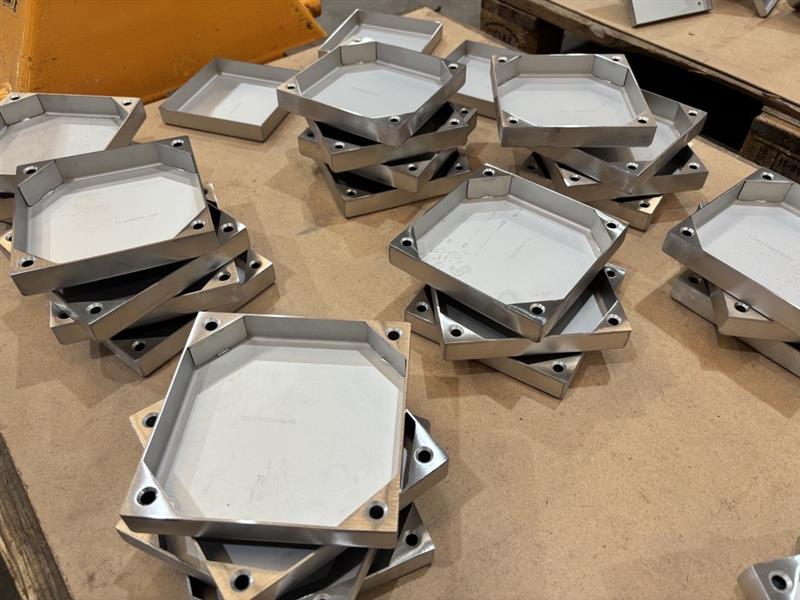

ACO Access Covers in stainless steel

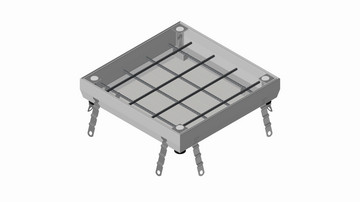

ACO Access Covers square or rectangular with 60mm infill

  • in stainless steel AISI304 or AISI316
  • Standard sizes 300mm, 400mm, 500mm, .... up to 1000mm
  • incl. locking devises and lifting tools
  • Load Class A15, B125, C250

ACO Access Covers square or rectangular with 100mm infill

  • in stainless steel AISI304 or AISI316
  • Standard sizes 500mm, 600mm, 700mm, .... up to 1000mm
  • incl. locking devises and lifting tools
  • Load Class B125 and C250

ACO Waste Water Treatment

ACO Grease Trap

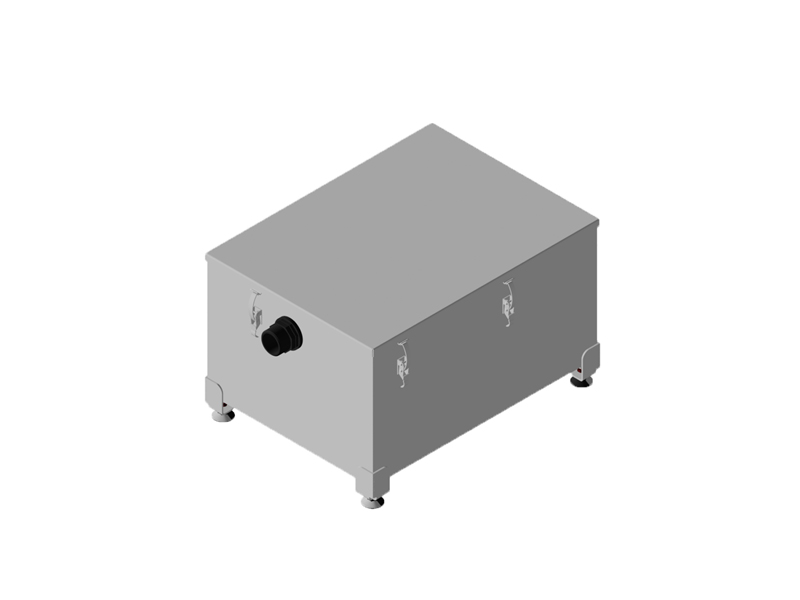

ACO Grease Trap AGT-40 for under-sink installation
  • ACO Grease Trap, made in U.A.E., is localy designed for food service establishments where space is limited and a larger grease separator cannot be installed. Removing FOG before it enters the drainage system and protects against blockages.

    ACO Grease Trap Data Sheet

For more information send E-mail to info@aco.ae or get in contact with our Sales Manager in your region.
