Planning tools

From the design of separators or lifting systems to the visualization of surface coverings in combination with different grating designs.

Here you will find a few valuable tools - the ACO online planning tools.

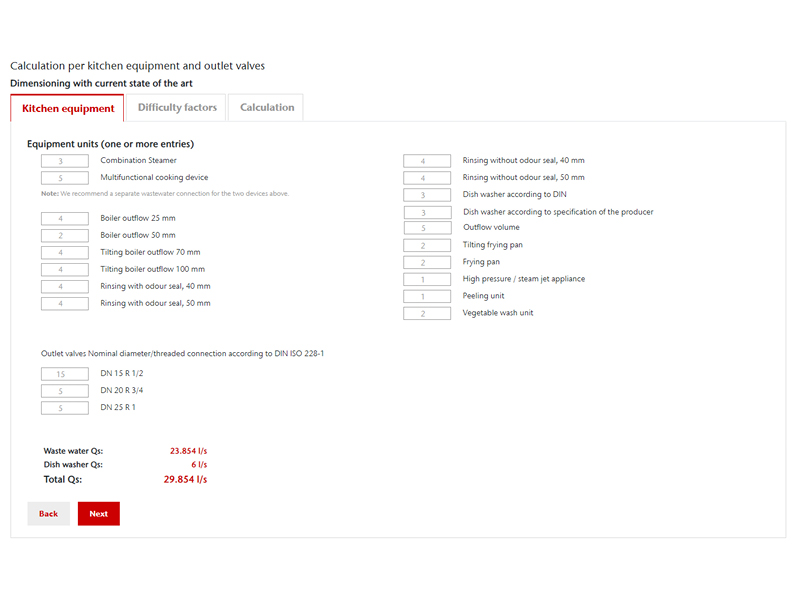

ACO Assistant for dimensioning grease separators

This tool supports you in the design and calculation of grease separators!

You can choose between the following calculation bases:

  • for kitchen furnishings and drain valves
  • by meal portions in commercial establishments
  • for meat processing plants
Start design tool

Be inspired by the ACO Visualizer! Simply start the grate configurator, select the desired surface finish and test the grates.

Drainage as a visual design element

ACO offers architects and planners exceptional design options. With numerous options and countless combinations up to completely individual designs, it is up to you - the planner and architect - to make a significant difference and create something extraordinary.

Regardless of whether you want to hide or emphasize the elements, you can choose from attractive standard solutions to completely individual design options.

  • Car parking areas
  • Urban areas
  • Domestic parking areas
  • Industrial areas
ACO DRAIN® Visualizer

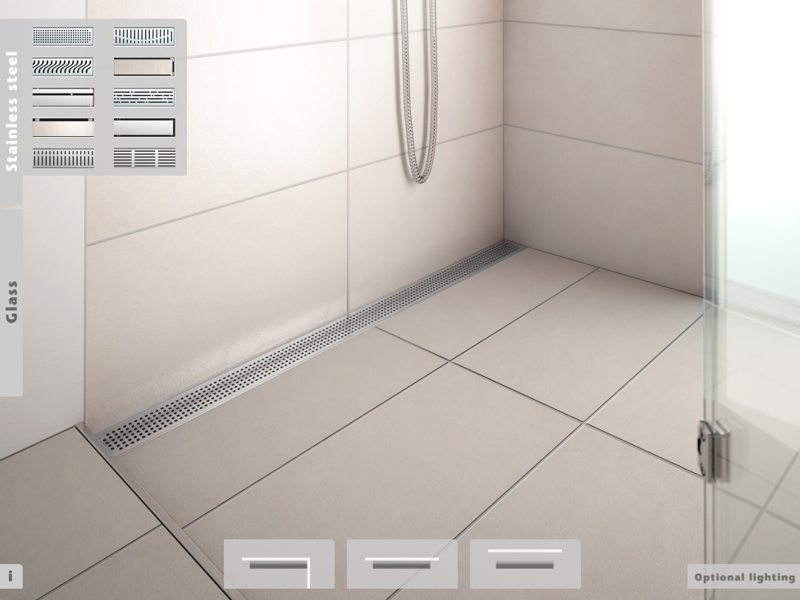

ACO Shower Design Visualizer

Be inspired by the ACO Shower Visualizer! Simply start the shower channel grating configurator, select the design and check more styles.

Bathroom drainage as a visual design element

ACO offers architects and planners many design options.

  • Tile type design
  • Quadrato design
  • Solid design
  • Wave design
ACO Shower Design Visualizer

ACO Stainless steel grating selection guide

Grating selection guide to choose stainless steel gratings for the commercial kitchens and F&B industry.

  • Ladder bar gratings
  • Mesh gratings
  • Slot covers
  • Frameless ladder gratings
ACO Grating Selection Guide

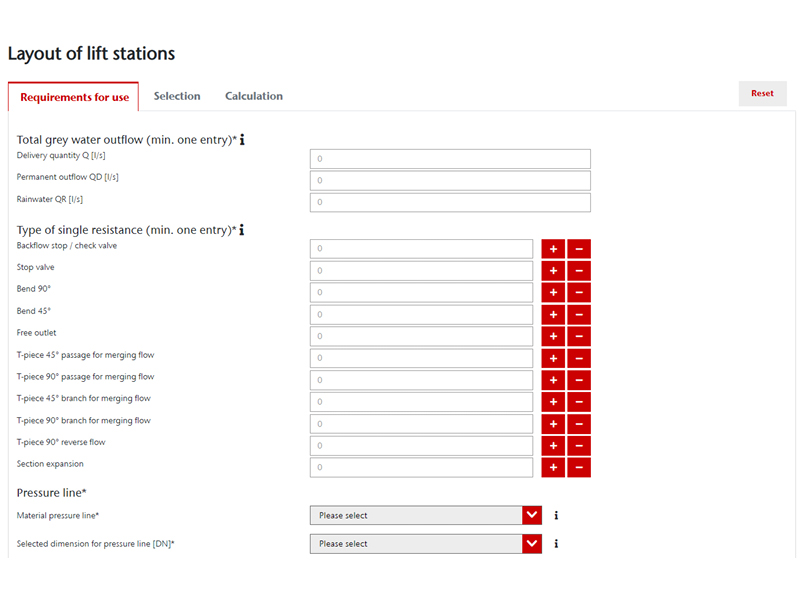

ACO Assistant for designing wastewater lifting stations

With the aid of the ACO pump selection program, the appropriate wastewater lifting system can be determined for a given application. This is done by entering a few parameters.
Our recommendations for planning and dimensioning are generally non-binding, created according to your information and must be checked by the customer.

The following calculation types are available:

  • based on a known total flow rate
  • by housing units/residents
  • by drainage items
ACO Lifting Station Planner

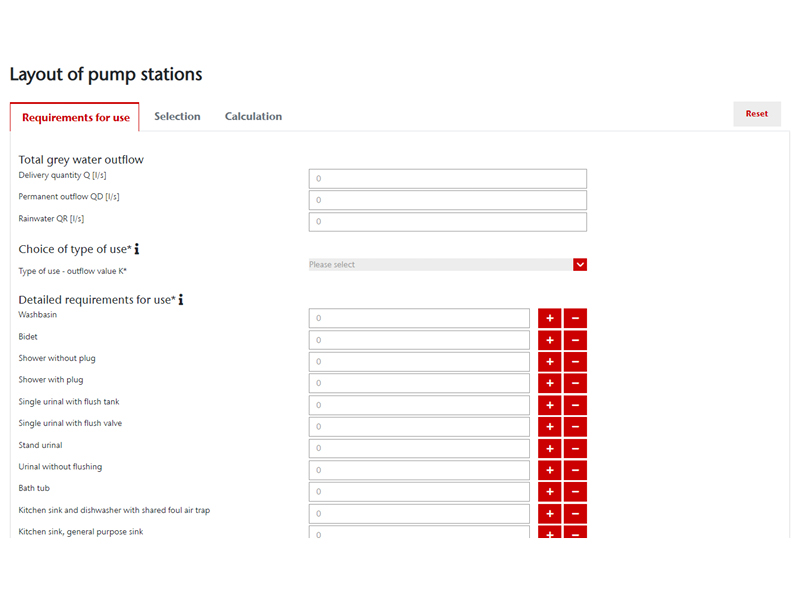

ACO Assistant for designing pumping stations

With the help of the planning aid for pumping stations and pumps for on-site shafts, you can determine the right system for your specific application. This is done by entering a few parameters.
Our recommendations for planning and dimensioning are generally non-binding, created according to your information and must be checked by the customer.

The following calculation types are available:

  • based on a known total flow rate
  • by housing units/residents
  • by drainage items
ACO Pumping Station Planner
