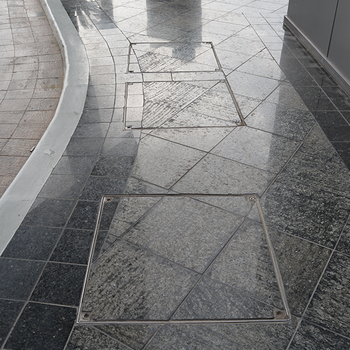

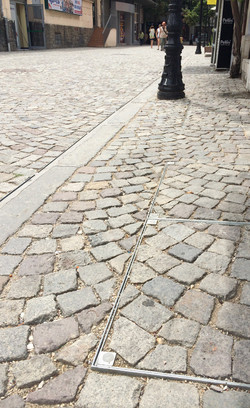

Access covers are a critical point in the urban environment. Very often they are the weakest place in the pavement, which breaks down and causes unevenness, areas of risk and poor aesthetic appearance. The structure of the ACO Access Covers allows the floor to be embedded in the lid frame. This gives freedom in the design of areas with natural stone, pavement, asphalt or other architectural solutions without visual surface discontinuity with a guaranteed flat surface and bonnet resistance, as required by European standards. Made of stainless steel, galvanised steel, cast iron or aluminum.

Access covers with built-in flooring
Uniface, Paving, Solid Access Covers

    Applications:

    • Sidewalks
    • Squares
    • Parking
    • Walking and cycling paths
    • Shopping Malls and Retail outlets
    • Residential areas and Private Villas
    • Terminals in Airports and Seaports
    ACO Sales Manager Contacts

    For more information send E-mail to info@aco.ae or get in contact with our Sales Managers by clicking the above button.

    ACO Access covers are designed for horizontal installation, the tray is up. Covers are made from stainless steel, galvanised steel or aluminium in different load classes according to EN 124. They are divided according to the filling material into covers filled with concrete, covers made for filling by the paving and the covers with checkered steel plate on the top. The covers should not be used while the temperature is above 70°C.

    • Stainless steel is suitable for application in meat, beverage, chemical or food industry
    • Covers made of galvanized steel are typical for residential buildings, as well as for production and storage buildings
    • Aluminum covers for demanding applications such as in hotels and hospitals will complete the program

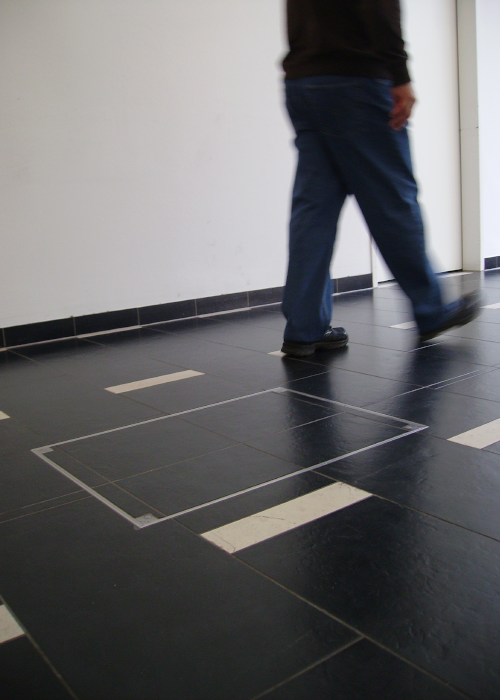

    ACO Access Covers can be flexibly installed into any interior or exterior areas. Their installation and handling, as well as their maintenance and cleaning, are easy. A wide range of standard types with many options, tailor made production and the possibility of using various floor surfaces make an ACO Access Cover look like an inconspicuous chameleon smartly merging into its background while retaining its full functionality and safety.

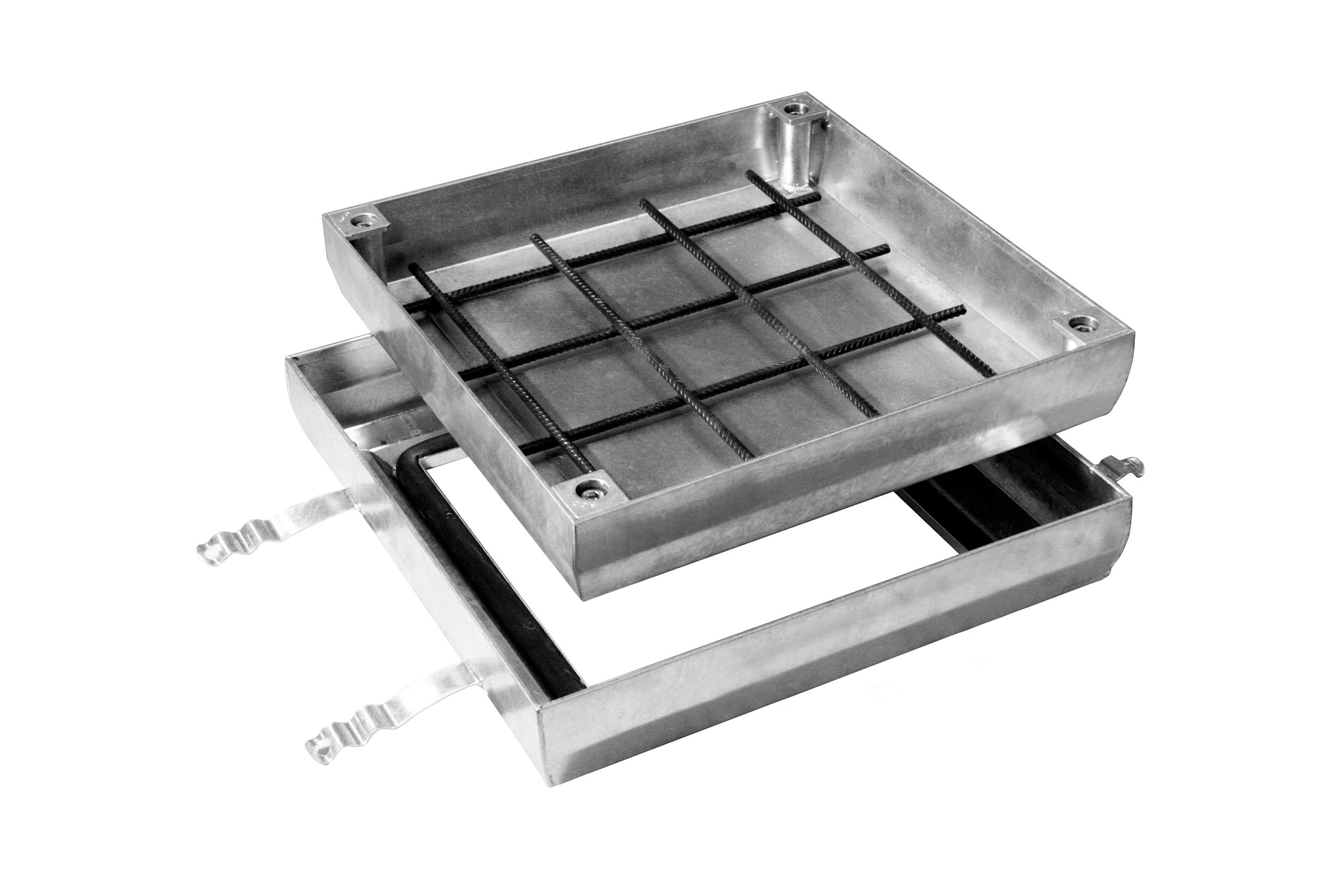

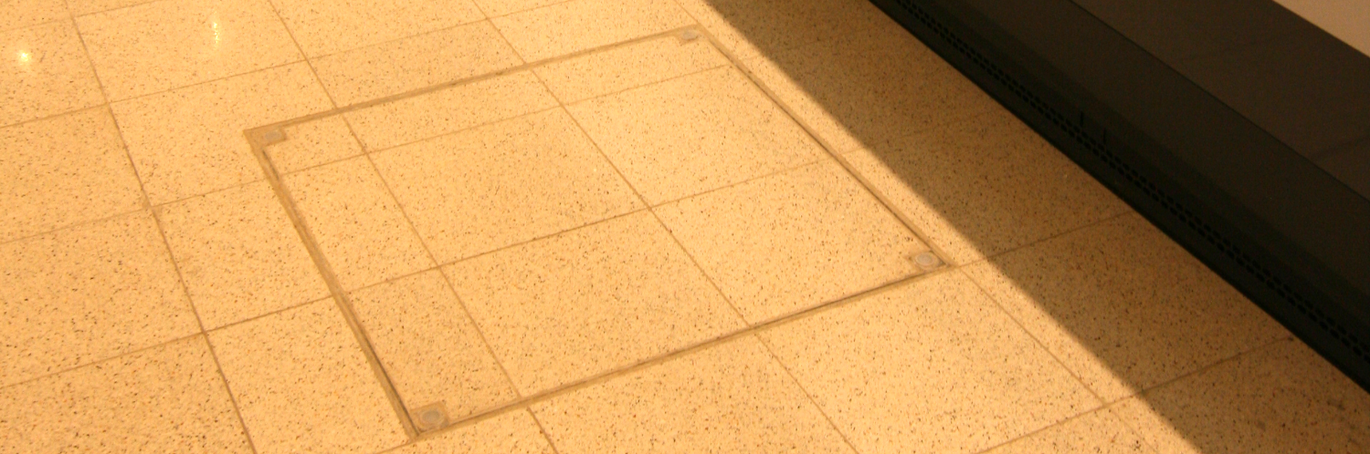

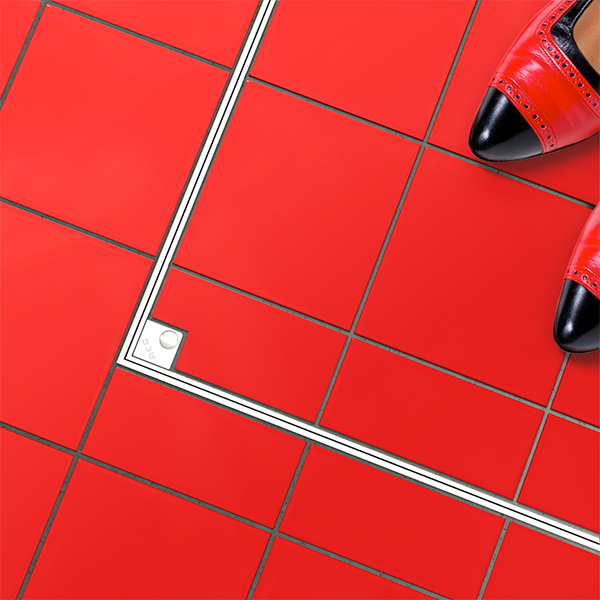

    ACO Access Cover UNIFACE

    Typical applications are inside buildings or in building surroundings, where high level of design is required. Recessed access covers are suitable for a thin floor surfaces in thickness up to 15 mm. The cover must be filled-up with concrete of required quality (C35/45) in order to achieve declared load capacity.

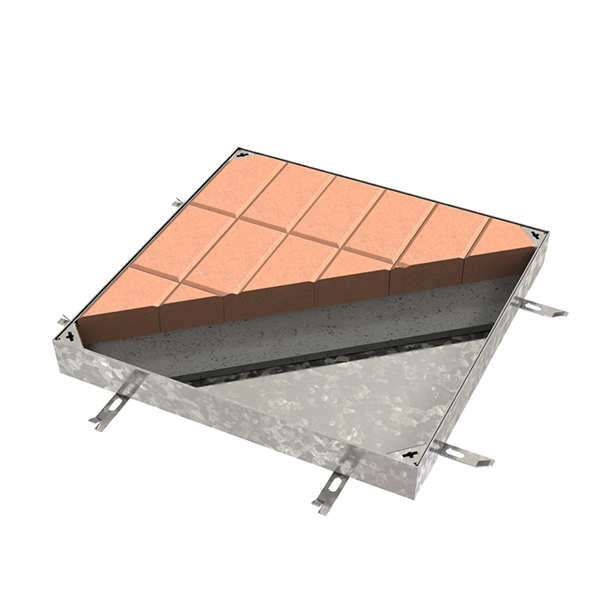

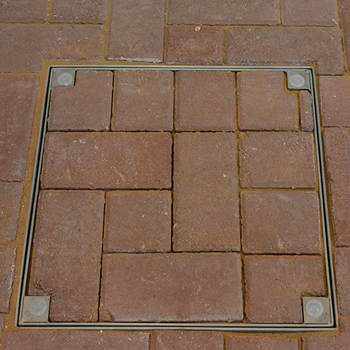

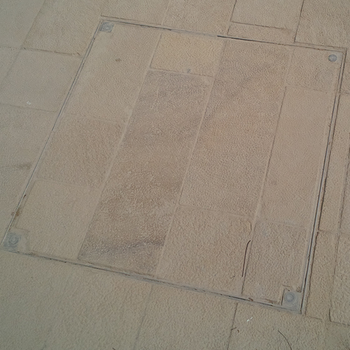

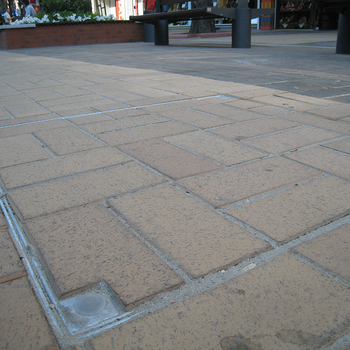

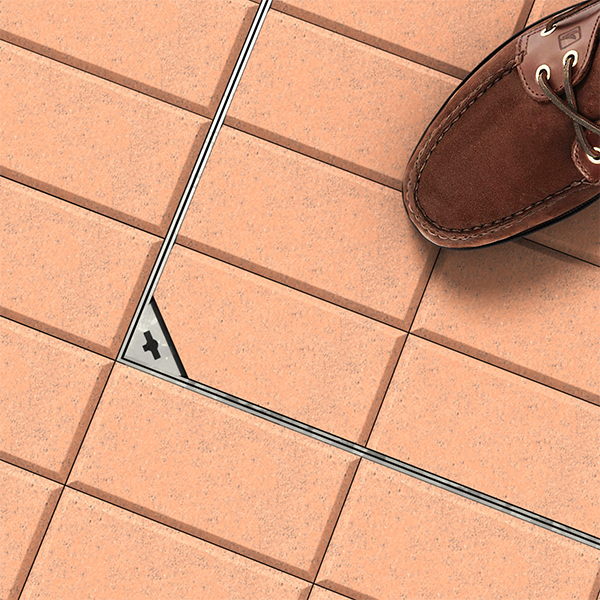

    ACO Access Cover PAVING

    Typically specified for use outside buildings, for pedestrian areas, driveways and car parks. Recessed access covers for a pavement, natural stone or bitumen infill in height up to 120 mm.

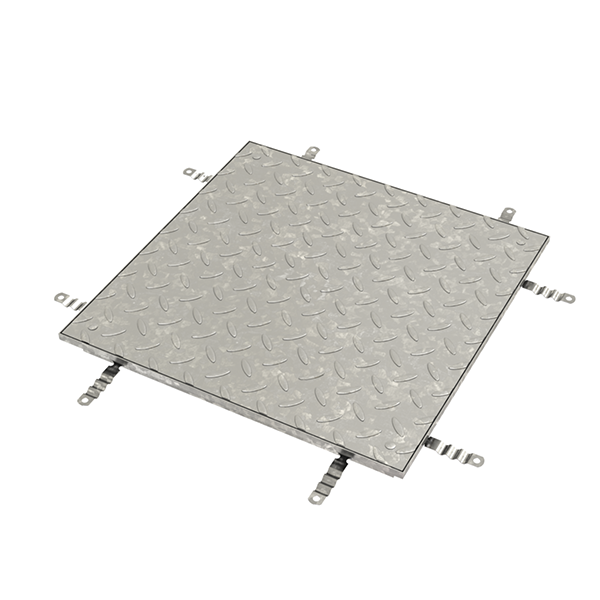

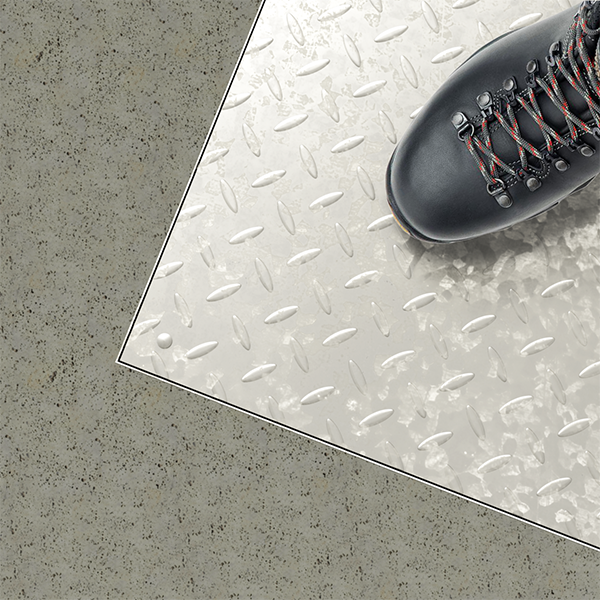

    ACO Access Cover SOLID

    Suitable for light industrial applications, where simple and lightweight covers are required. Surface of the cover is formed by anti slip tread “checker” plate. Optimized supports are welded underneath of the cover which guarantee declared load capacity.

    ACO product benefits:

    • Type tested and certified according to EN 1253-4.
    • Tested with space for tiles 15 mm (competitors covers tested completely filled with concrete)
    • Bolt locked – child safety
    • Corrosion resistant
    • Small corner parts
    • Secure installation – good connection with concrete (profiled frame or anchors)
    • Discreet product after installation
    • Easy tool for opening and manipulation

    ACO product benefits:

    • Strong supports are welded underneath of the cover
    • Load capacity up to load class C250 for all clear openings up to 1 m
    • No concrete or any other additional structural infill necessary

    ACO product benefits:

    • No concrete or any other additional structural infill necessary
    • Type tested and certified according to EN 124
    • Sealed for water and odour-tightness
    • Bolt locked – child safety
    • Corrosion resistant
    • Secure and time saving installation
    • No risk – load capacity always guaranteed
    • Durable

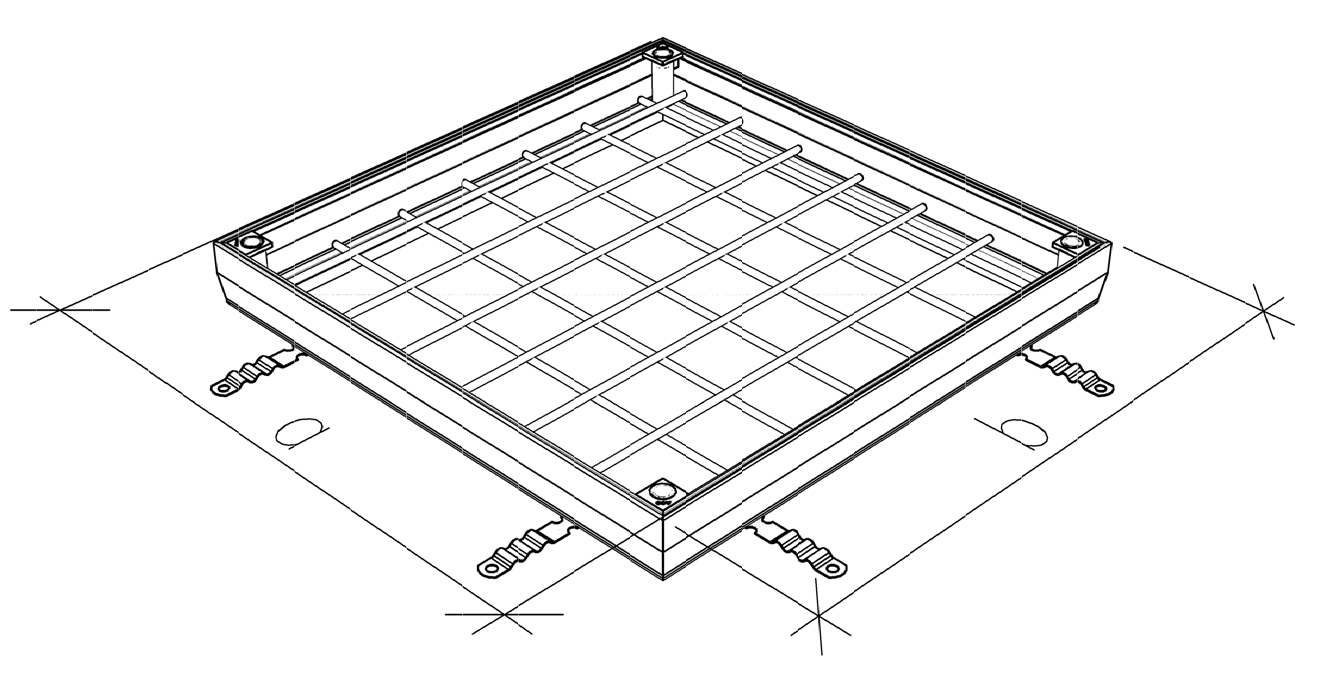

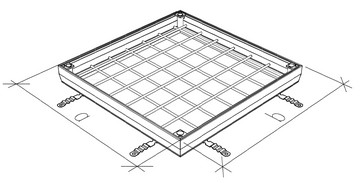

    ACO Uniface covers SS - in stainless steel

    МaterialStainless steel
    Width /а/ (mm)from 400 to 1100
    Length /b/ (mm)from 400 to 1100
    Height /h/ (mm)from 70 to 140
    Load classА15 - С250
    StandardDIN EN 124
    Optional custom sizes

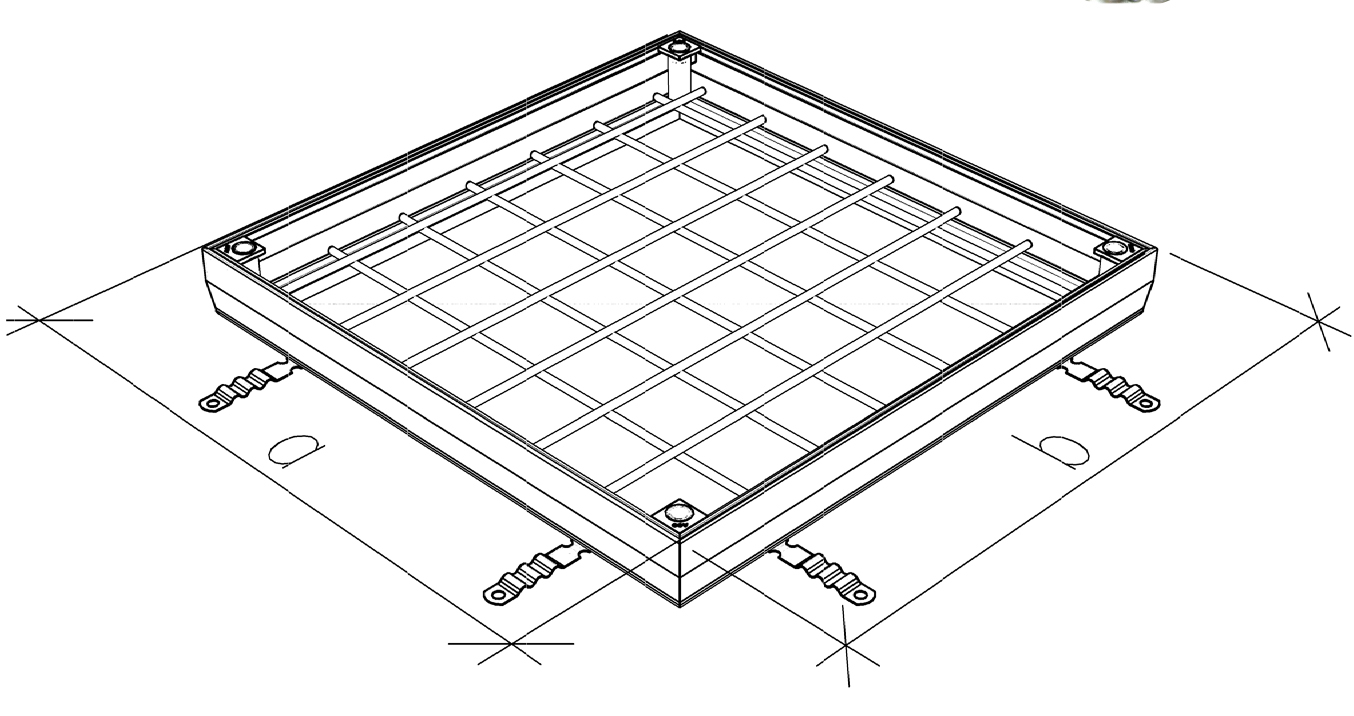

    ACO Uniface covers GS - in galvanised steel

    МaterialGalvanised Steel
    Width /а/ (mm)from 400 to 1100
    Length /b/ (mm)from 400 to 1100
    Height /h/ (mm)from 70 to 140
    Load classА15 - С250
    StandardDIN EN 124
    Optional custom sizes

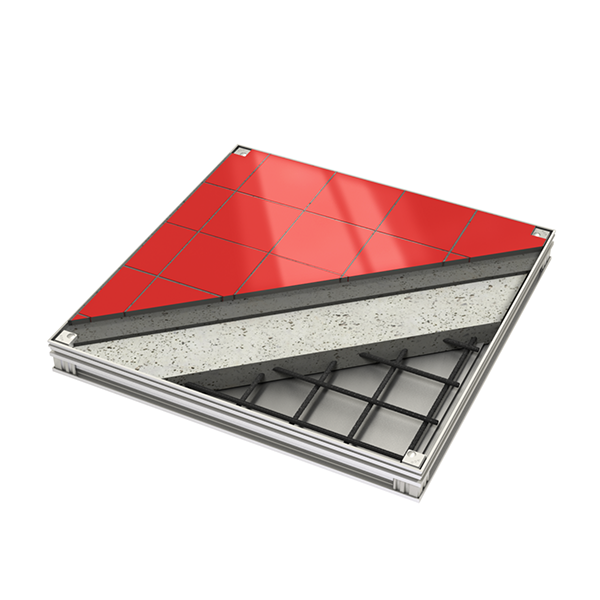

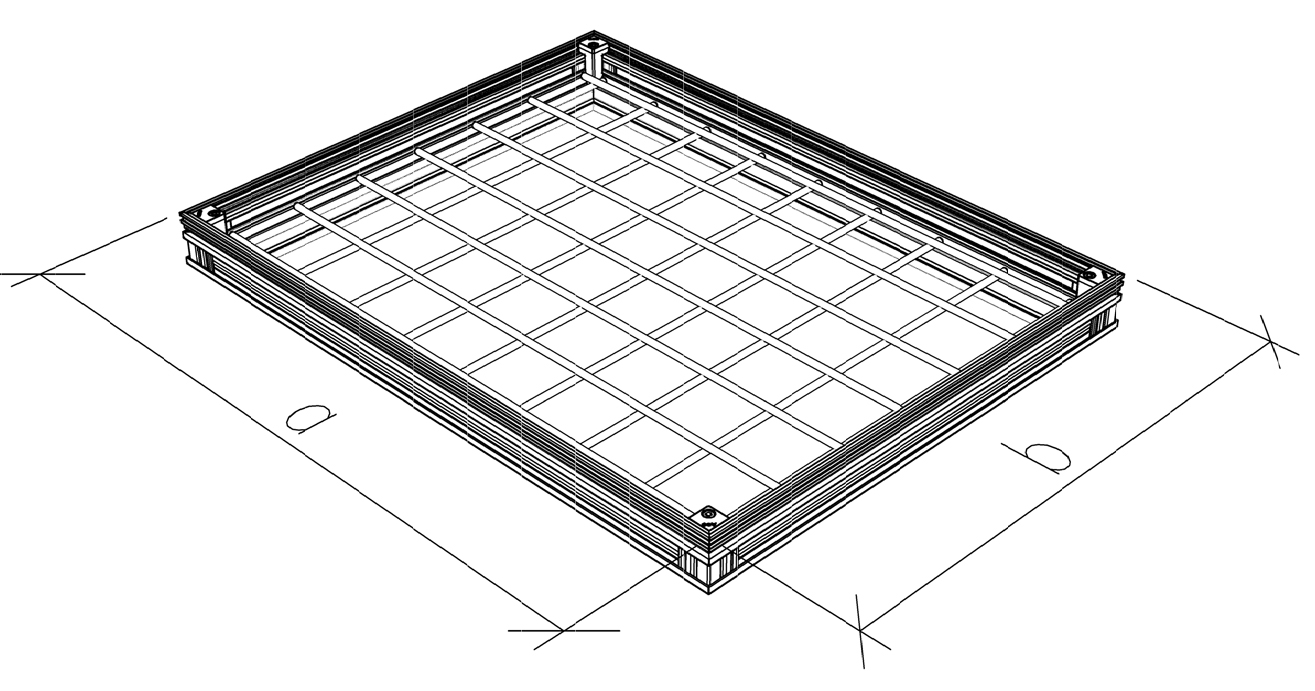

    ACO Uniface covers AL - in aluminium

    МаterialAluminium
    Width /а/ (mm)from 400 to 1100
    Length /b/ (mm)from 400 to 1100
    Height /h/ (mm)from 70 to 140
    Load classА15 - С250
    StandardDIN EN 124
    Optional custom sizes

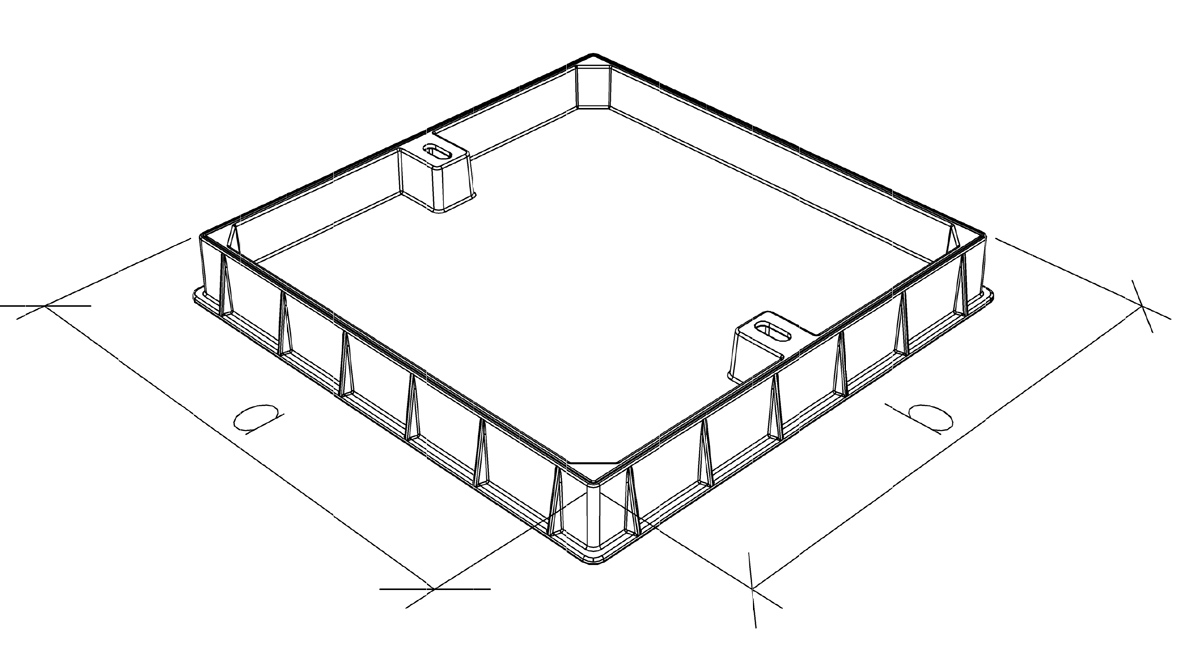

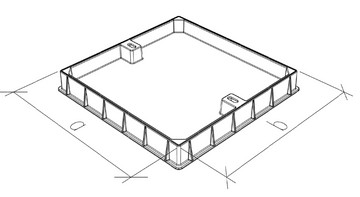

    ACO Uniface covers GG - in cast iron

    МаterialCast iron
    Width /а/ (mm)700
    Length /b/ (mm)700
    Height /h/ (mm)90
    Load classА15 - D400
    StandardDIN EN 124
    Optional custom sizes
    • The possibility of large dimensions with removable cross beams that allow access to the entire light hole of the shaft.
    • Rubber seal for water tightness and odor
    • Solutions for all load classes from A15 to F900, according to DIN EN 124
    • Ability to build flooring's with different heights
    • Variety of materials according to the requirements of the application
    • Protection against vandalism and unauthorized access to the shaft by locking
    • Ability to make sizes on request

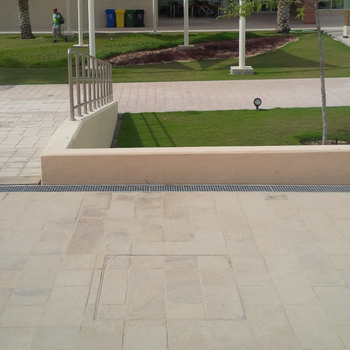

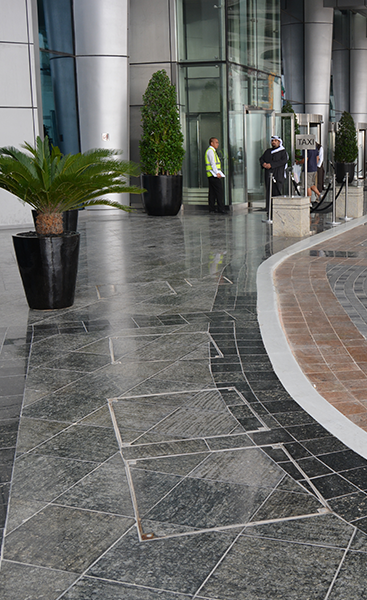

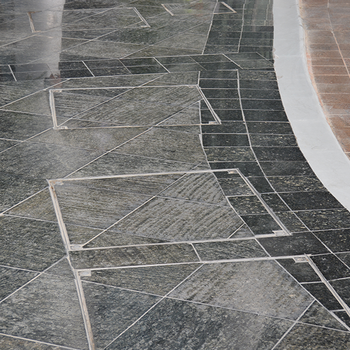

    Middle East References
