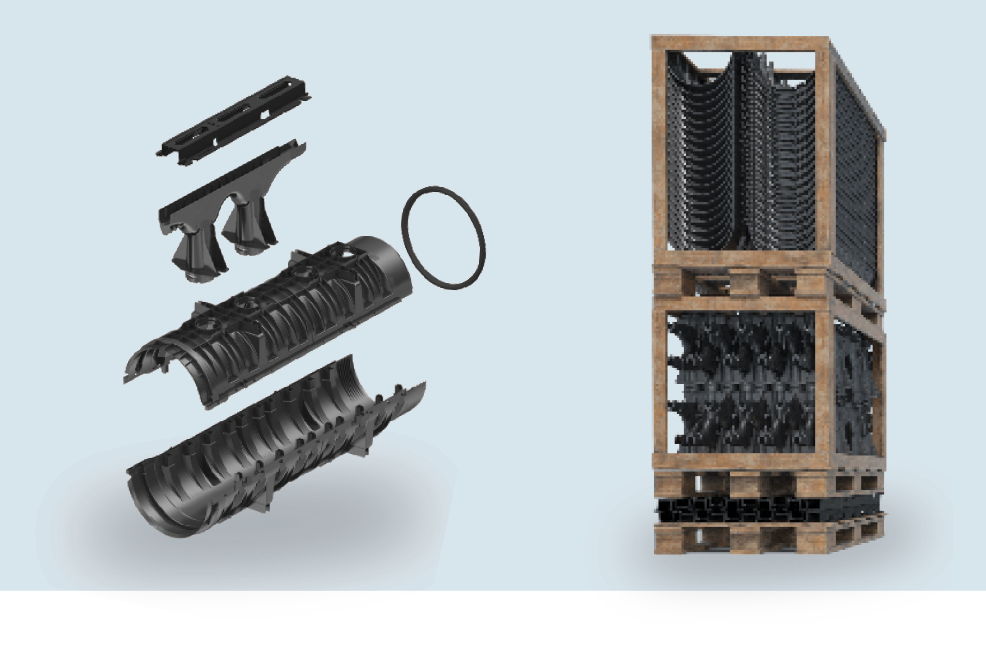

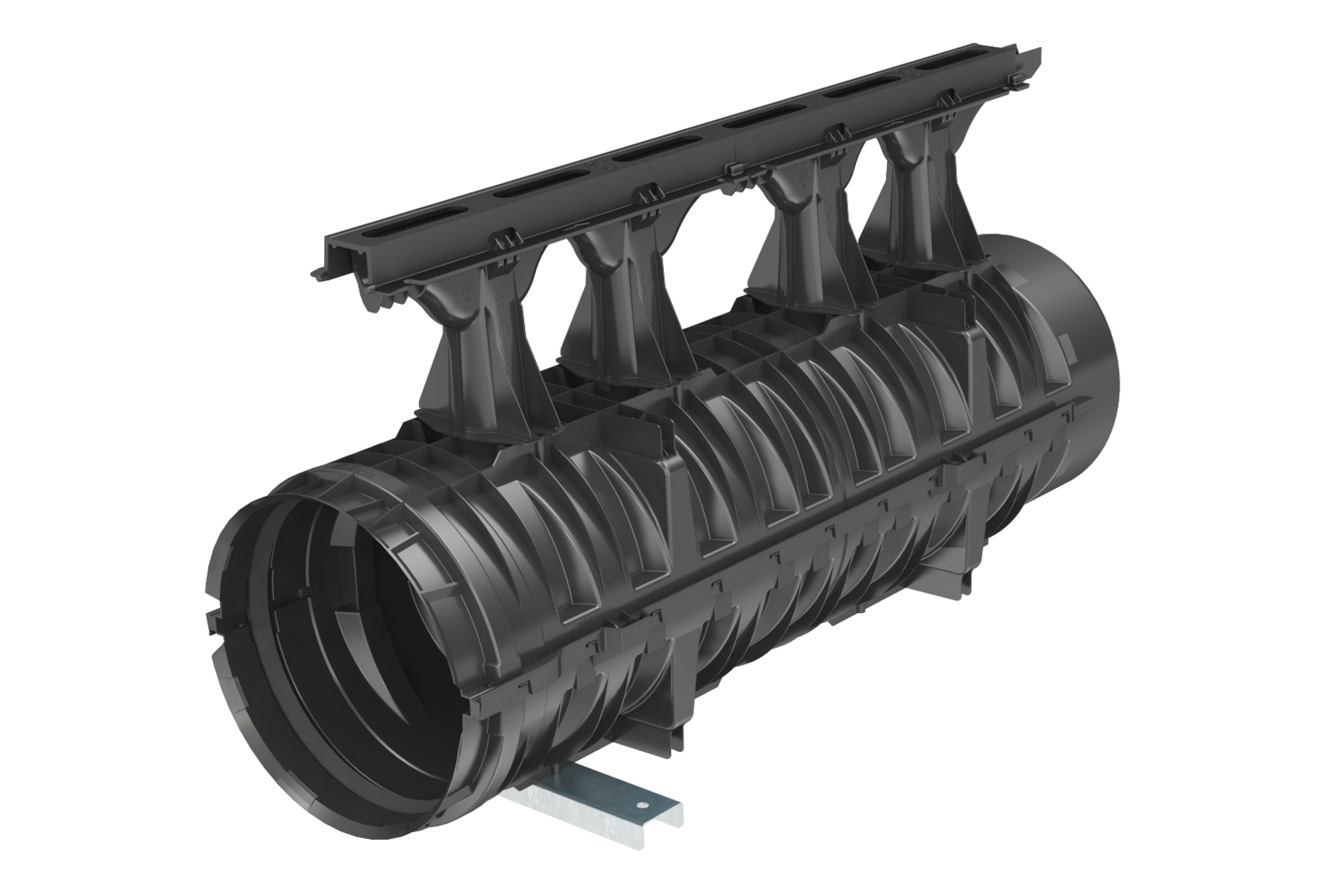

ACO Qmax Neo is designed to respond to all challenges of draining large areas, heavy loads and high hydraulic capacity. As an added benefit, the system places a special focus on efficiency. The modular system significantly optimizes site transportation and storage, making it a preferred solution for projects with large catchment areas. In addition to these advantages, ACO Qmax Neo offers a discrete surface slot for all load classes as well as water storage volume.
Design Benefits
- Variety of edge rails according to the application and the specific project requirements, offering discreet slot drainage for all load classes
- Different sizes as well as combination options for any unlimited hydraulic performance
- Retention volume for storage and controlled release of rain water

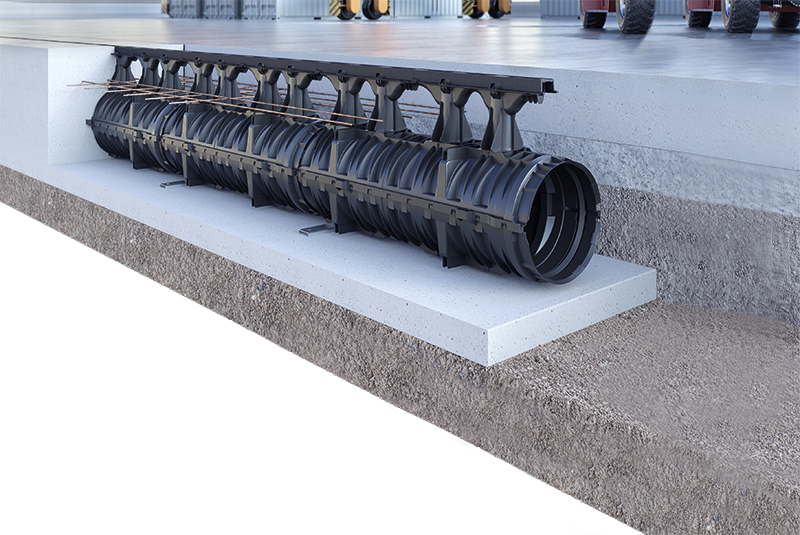

- Beam design for continuous reinforcement of the surface
Installation Benefits
- Push-fit connection for a simple installation
- Light weight elements allow quick installation without need of additional lifting devices
- Levelling feet of the channel offer easy fixing to the concrete layer
- Detailed installation guide as well as site support option
Operation Benefits
- The narrow rail allows a discreet drainage up to the highest load classes including F 900
- Smooth surface enhances self cleaning and reduces maintenance costs
- Polypropylene material for resistance to chemicals and corrosion
- Quick and effective collection of storm water for optimal protection of the property
High hydraulic capacity - discreet slot on the surface

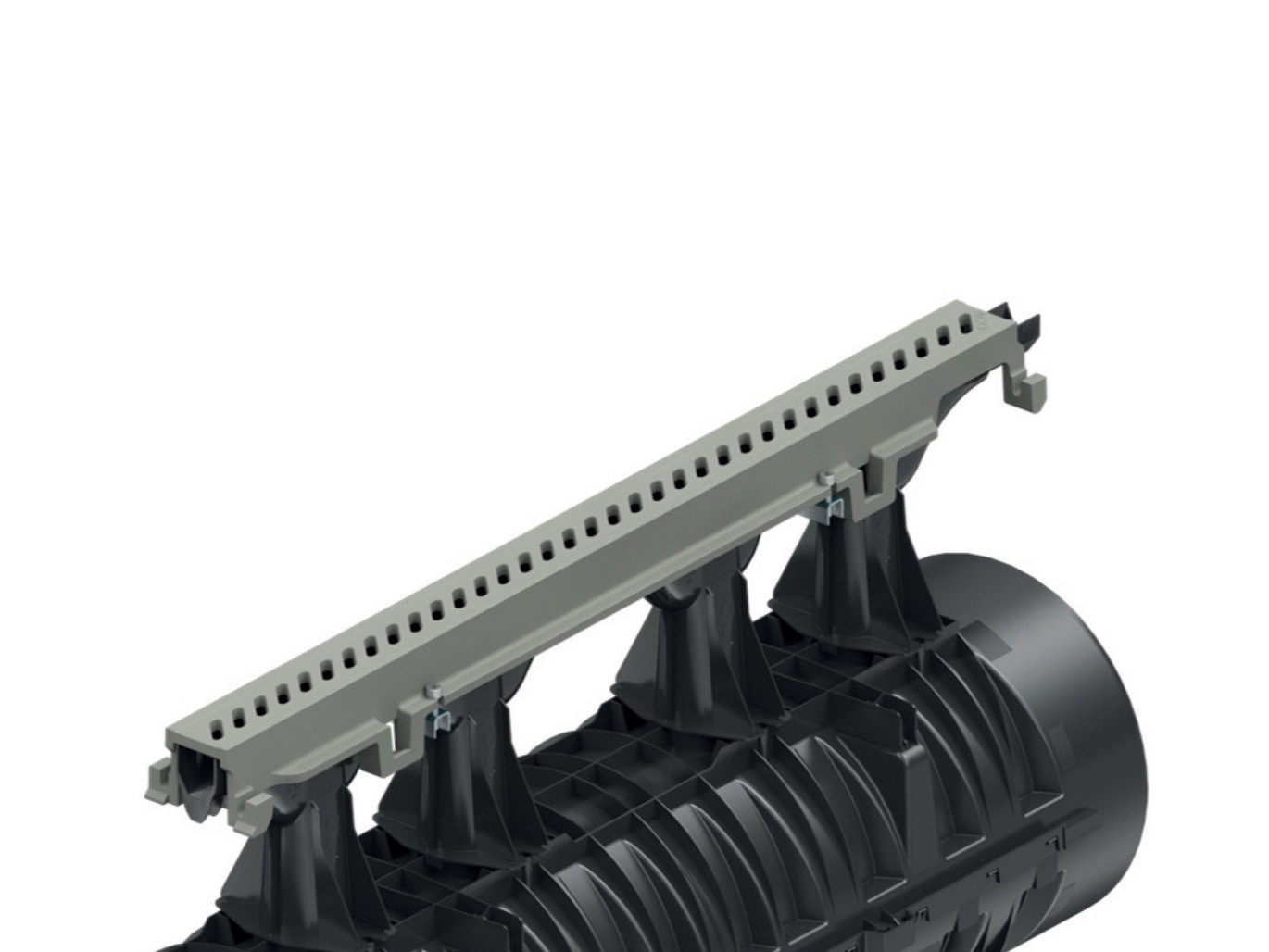

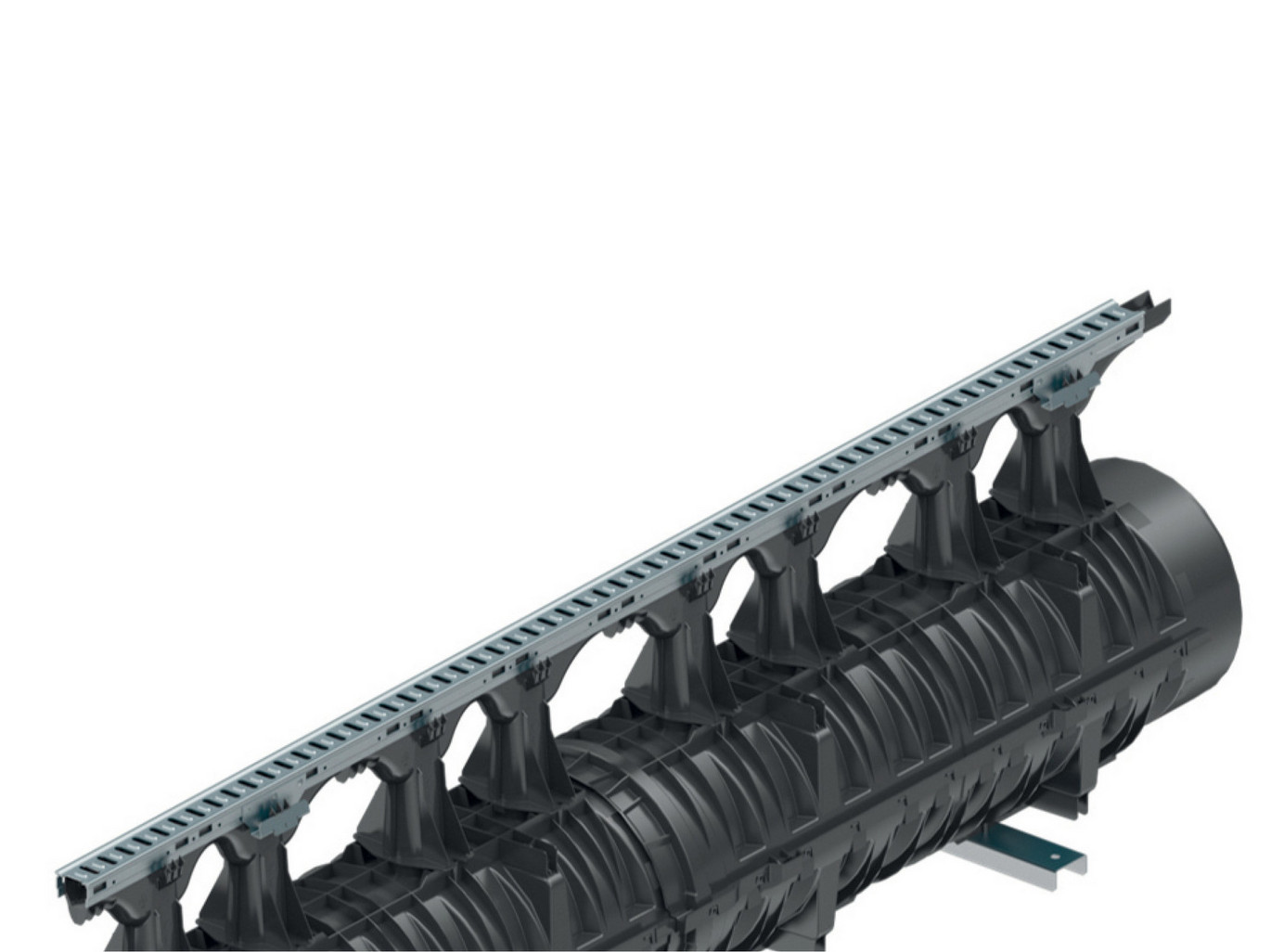

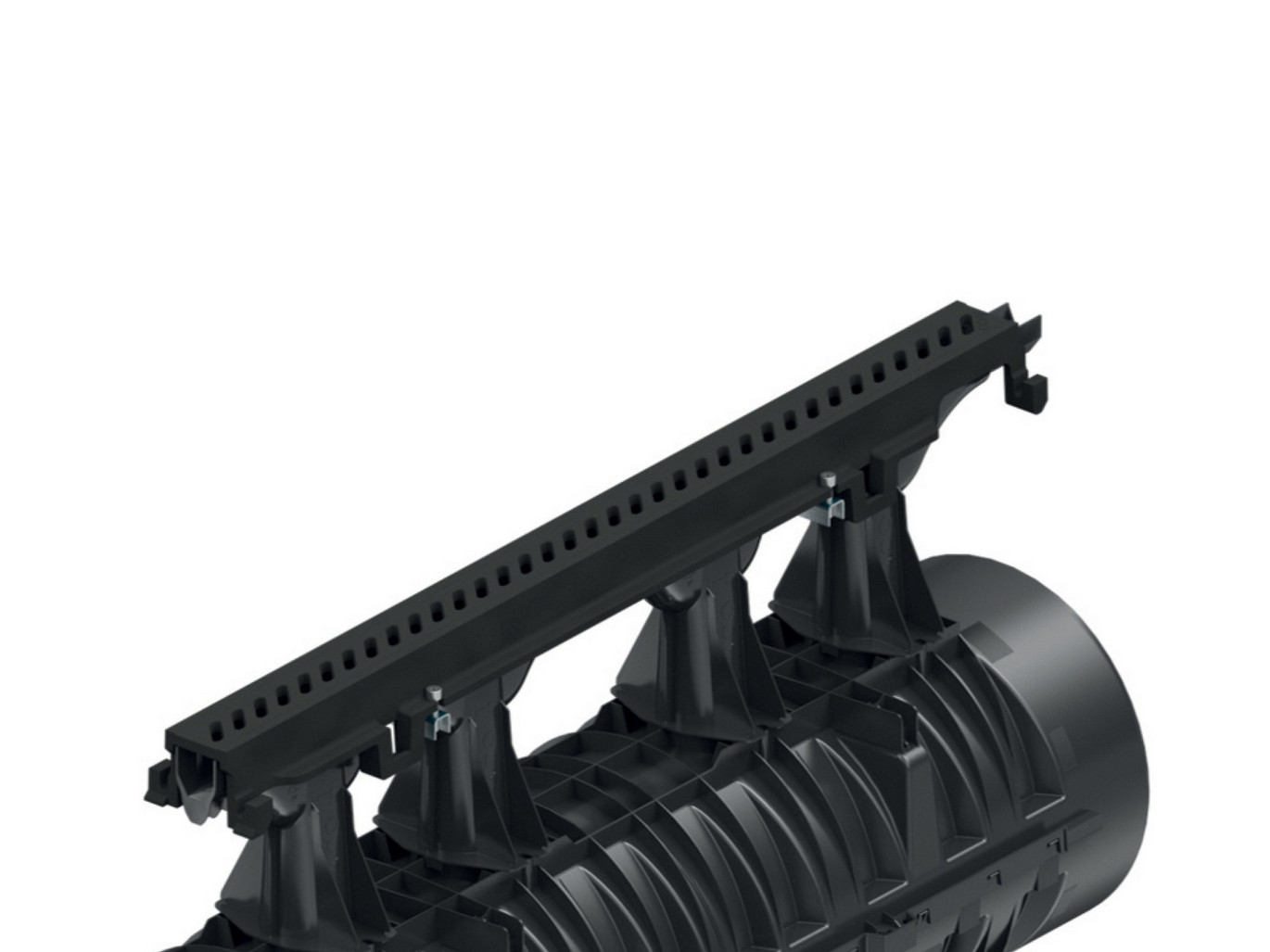

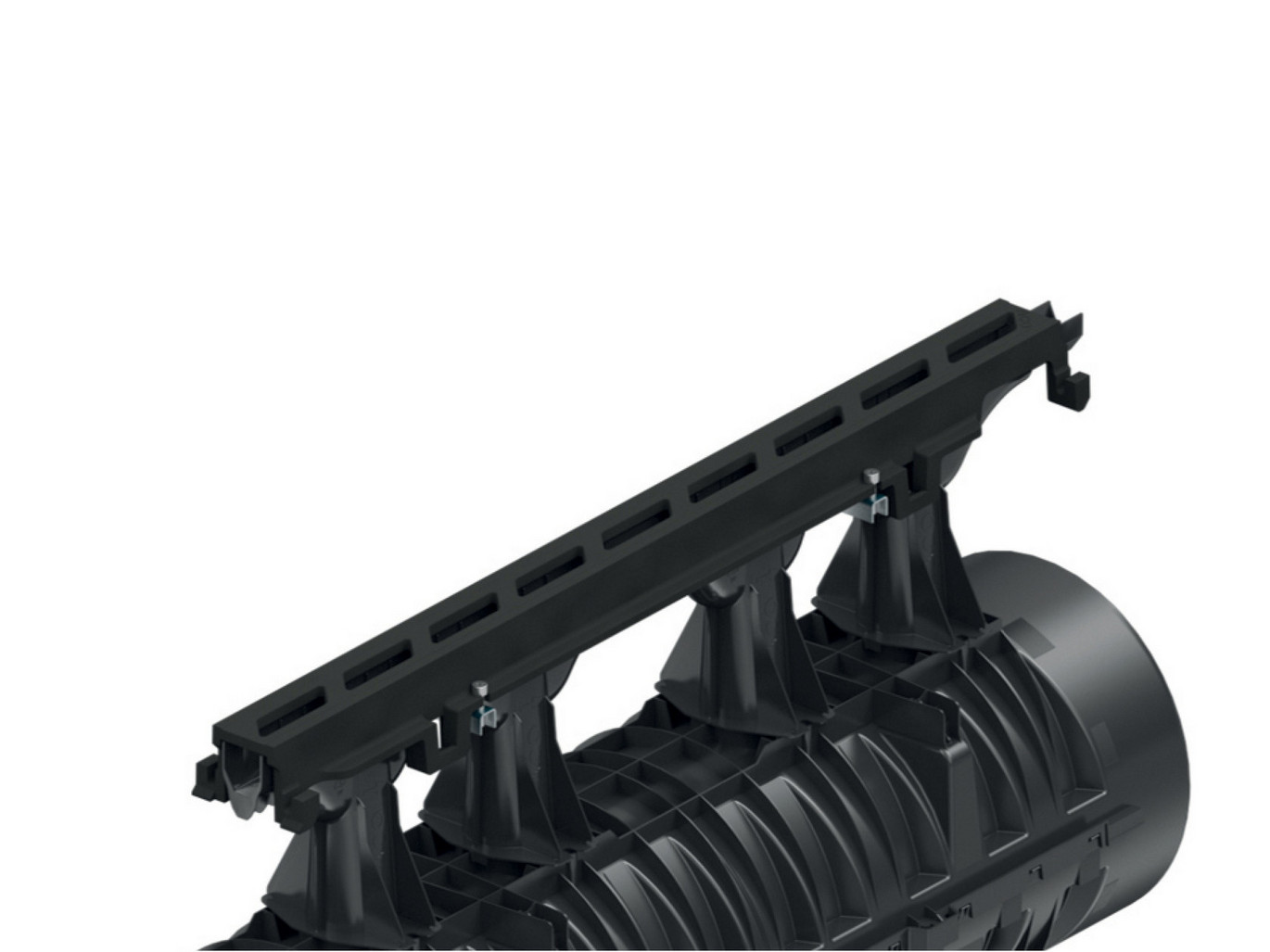

The ACO Qmax® edge rails are compatible with all channel sizes. Depending on the application, Designers, Planners and Architects can choose from rails in ductile iron, hot dipped galvanized steel or the new composite material, which comes in black and on request also grey color.
Sustainable storm water management is an extremely important topic for the future
ACO Qmax Neo meets the need for a flexible slot drainage system with high hydraulic capacity for all applications – from large to small catchment areas. The cost-effective design of the system and its easy installation make it a suitable solution for a wide range of applications, with any type of load class. ACO Qmax® is specifically designed as an integral part of any sustainable and modern surface water management solution. The system optimizes the available hydraulic capacity by providing efficient storage, attenuation and removal of large quantities of water.
