Roof, terrace, balcony & façade

Roofs encompass the upper building boundary and their design is an important part of the overall structure of the building. Planning errors in roof drainage can lead to, in extreme cases, the collapse of the roof. This can be dangerous and lead to the destruction of the entire property or lowering of its value. There are many aspects to consider when designing the roof drainage system. It’s important to take into account the local climate as well as the norms, regulations, architectural and construction requirements.

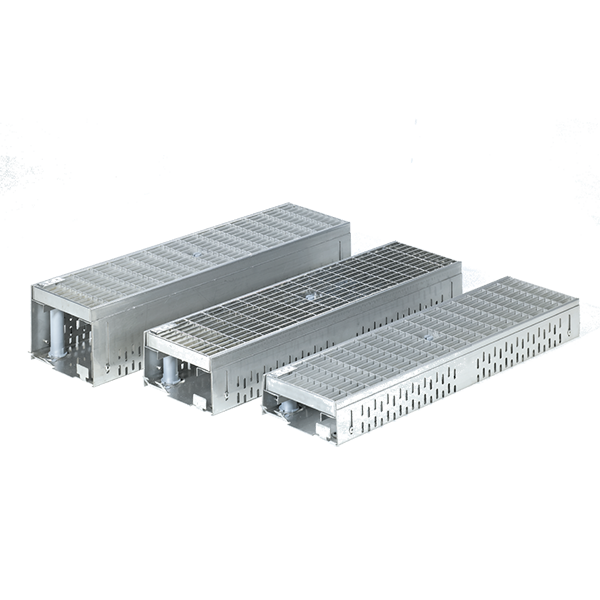

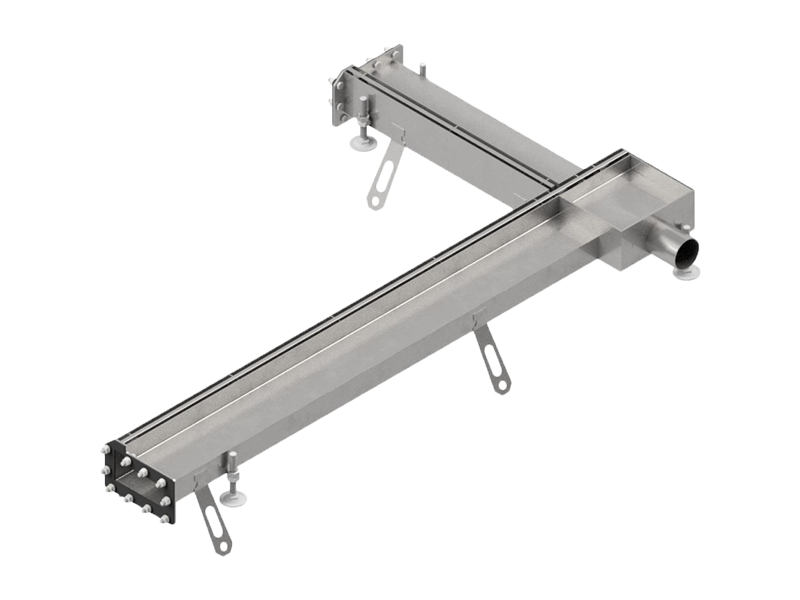

ACO Profiline

  • Line drainage for facades, terraces and flat roofs;
  • Made of galvanized or stainless steel
  • Wide variety of gratings
  • Light weight and easy installation
  • Adjustable height 55-168 mm
  • Suitable for pedestrian traffic and wheelchairs

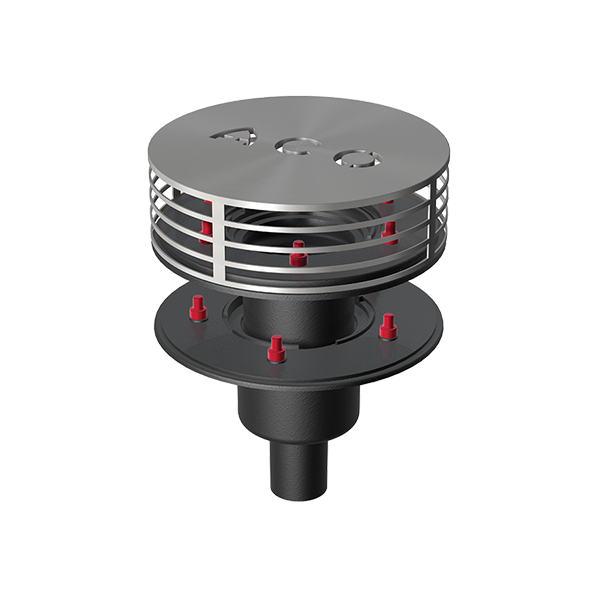

ACO Jet roof gullies

  • Siphonic roof drainage made of stainless steel or cast iron
  • Increased drainage performance level
  • Suitable for flat roofs with large catchment areas
  • Vertical outlet
  • Fire class A1, according to EN 1253-2

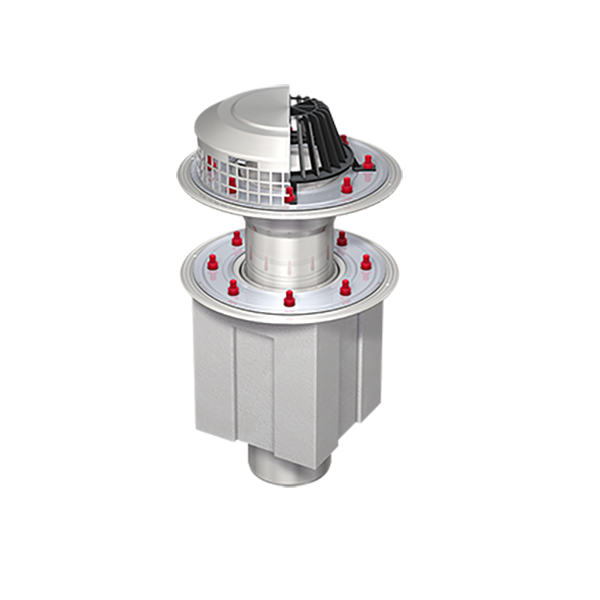

ACO Spin roof gullies

  • Gravity roof drainage made of stainless steel or cast iron
  • Suitable for main or emergency drainage
  • Variety of gully bodies, raising units and gratings
  • Options for secure connection to waterproofing
  • Vertical or horizontal outlet
  • Wide range of accessories
  • Fire class A1, according to EN 1253-2

Heavy rainfall

Flat roofs are sensitive architectural areas. Therefore a professional planning of the drainage system is particularly important. If rain falls on the flat surface, large amounts of water can quickly accumulate. To protect the building, a drainage system is required. Heavy and continuous rainfall must be considered to ensure the structure of the roof.

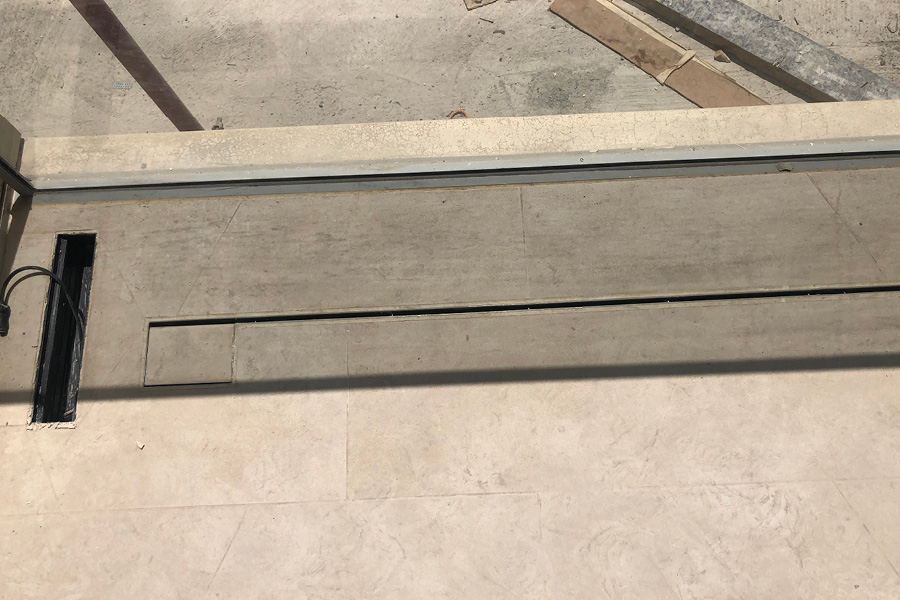

Barrier free movement

Modern public buildings must provide barrier free movement and accessibility to all internal and external areas of the building. In order to accommodate the high standards of architects and planners, drainage of facades and terraces should be perfectly integrated with the surrounding surface. Consequently, the height of the channels must be adjusted with mm-accuracy to the floor level. They should also prevent any water accumulation or splashing during heavy rainfall.

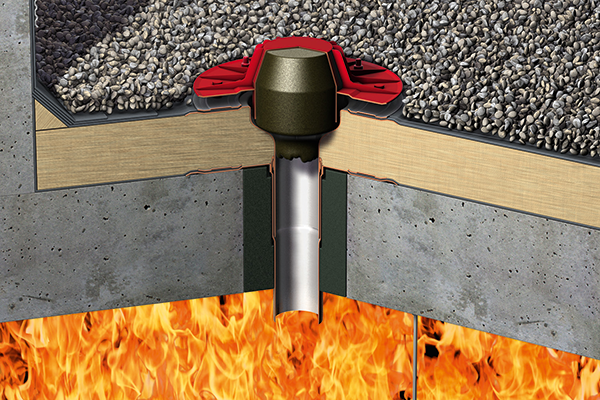

Fire Protection

All countries set general requirement about fire safety and protection. Therefore roof installation must be set up, modified and maintained in such a way that public safety and order are not jeopardized. Roof constructions must be arranged, erected, modified and maintained in such a way as to prevent the occurrence of a fire and the spread of fire and smoke.
