ACO Stainless steel products - designed & produced by ACO Systems FZE, a local manufacture in Dubai

1 ACO FZE Products Page Image

Stainless steel standard products and bespoken drainage solutions, manufactured in the facility of ACO Systems FZE in Dubai. We are located in the Jebel Ali Free Zone and deliver to more then 20 countries in the Middle East, parts of Africa and South Asia. Standard products for building drainage are shower channels and floor drains, kitchen drainage channels with gratings and bespoken channels with gratings for the F&B Industry. Standard products for external drainage are ACO Brickslot elements with revision unites, stainless steel gratings, slot channels in stainless steel and products as building material products like access covers in stainless steel.

ACO Building Drainage Products - made in U.A.E.

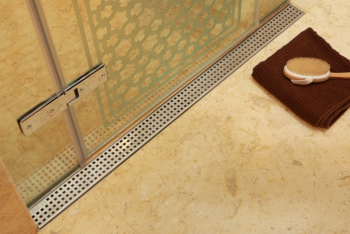

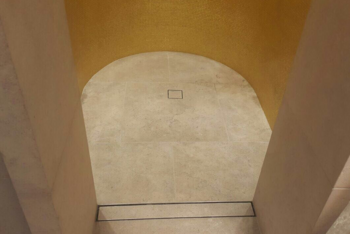

ACO Standard Shower Channels

Products SC 137130 Q
with "Quadrato" design grating
  • Mirror or brushed finish grating
  • Stainless steel AISI304 or AISI316
  • Center outlet D50, off-center possible
  • Standard width: 70mm
  • Standard lengths: 500mm, 600mm, 700mm, 800mm, 1000mm and 1200mm
Products SC 137142 W
with "Wave" design grating
  • Mirror or brushed finish grating
  • Stainless steel AISI304 or AISI316
  • Center outlet D50, off-center possible
  • Standard width: 70mm
  • Standard lengths: 500mm, 600mm, 700mm, 800mm, 1000mm and 1200mm
Products SC 137154 T
with "Tile-Type" design grating
  • Tile-type grating
  • Stainless steel AISI304 or AISI316
  • Center outlet D50, off-center possible
  • Standard width: 70mm
  • Standard lengths: 500mm, 600mm, 700mm, 800mm, 1000mm and 1200mm
Products SC 137166 S
with "Solid" design grating
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • Center outlet D50, off-center possible
  • Standard width: 70mm
  • Standard lengths: 500mm, 600mm, 700mm, 800mm, 1000mm and 1200mm

For more information send E-mail to info@aco.ae or get in contact with our Sales Manager in your region.

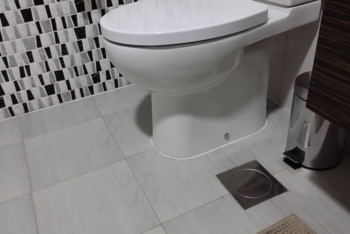

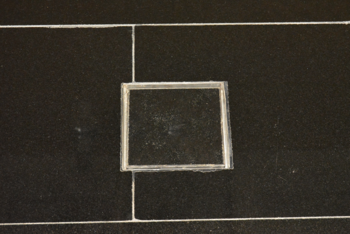

ACO Standard Floor Drains

Products FD 150x150 Universal
ACO Universal Floor Drain
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • outlet D100
  • for tile size 15x15cm or 20x20cm
  • incl. loose grating and loose cover
Products FD 150x150 Universal Locked
ACO Universal Floor Drain - with looked grating & loose cover
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • outlet D100
  • for tile size 15x15cm or 20x20cm
  • incl. looked grating and loose cover

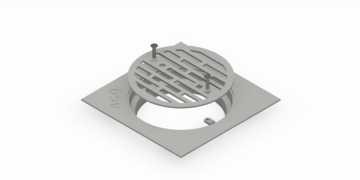

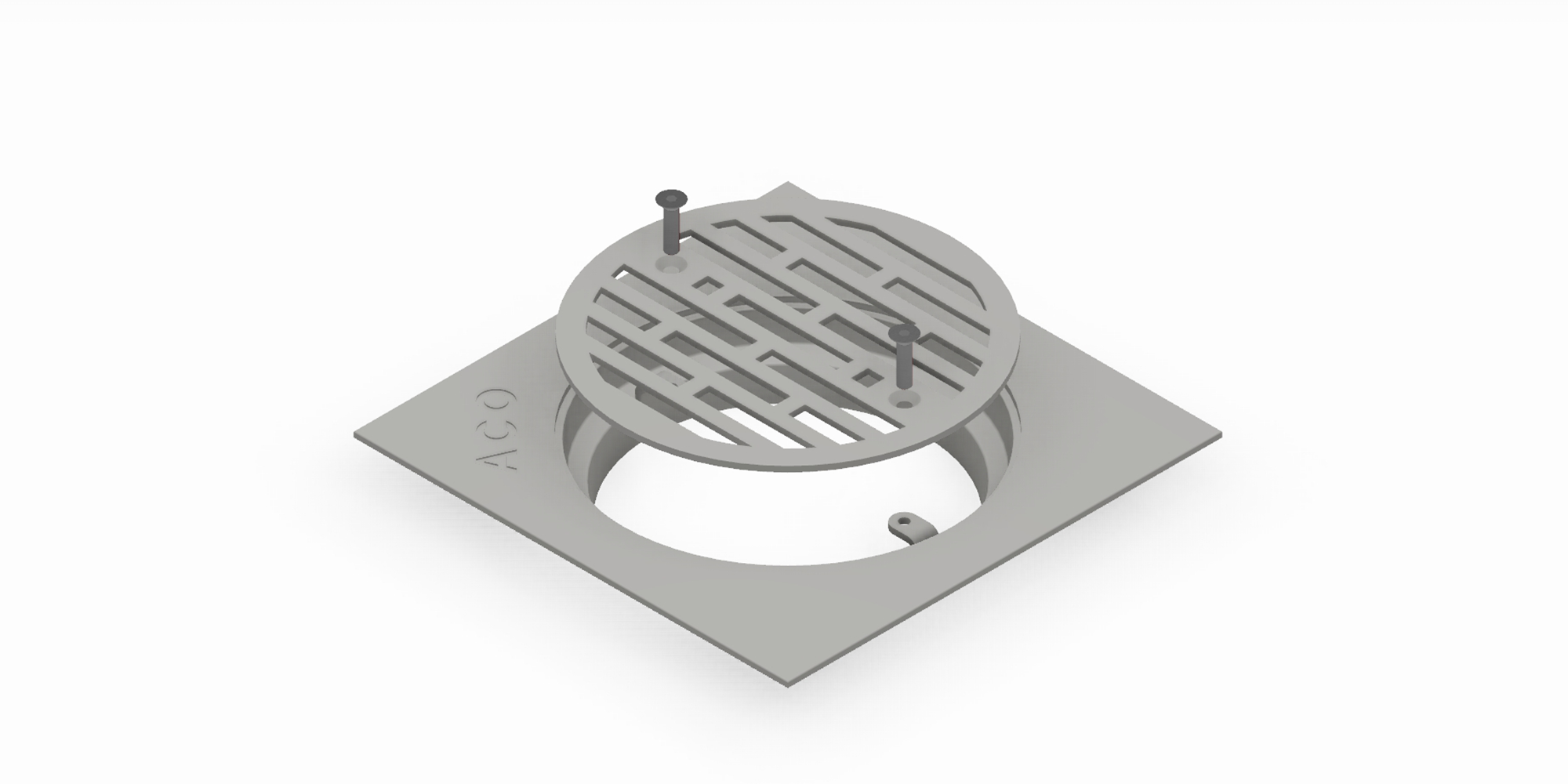

Products FD 150x150 Grating Locked
ACO Universal Floor Drain - with looked grating and without cover
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • outlet D100
  • for tile size 15x15cm or 20x20cm
  • incl. looked grating with screws
Products FD Universal With FAT X900518
ACO Universal Floor Drain with foul air trap
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • Outlet D100
  • for tile size 15x15cm
  • incl. FAT, sieve and loose cover
Products FD Perforated X142372
ACO Floor Drain with perforated grating
  • Mirror or brushed finish
  • Stainless steel AISI304 or AISI316
  • Size 75x75mm, outlet D50
  • Size 100x100mm, outlet D50 or D75
  • Size 150x150mm, outlet D110
Products FD Tile-type X141476
ACO Floor Drain "tile-type" with different dimensions
  • Stainless steel AISI304 or AISI316
  • Size: 100x100mm & outlet D50
  • Size: 100x100mm & outlet D75
  • Size: 150x150mm & outlet D110

For more information send E-mail to info@aco.ae or get in contact with our Sales Manager in your region.

ACO External Drainage Products, made in U.A.E.

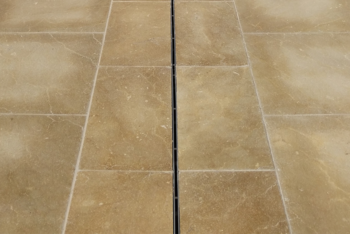

ACO Standard Brickslot Elements for ACO Multiline or ACO Euroline channels

Products BrSL Side For V-channel X143268 - DX06-00123
ACO Brickslot Elements with side slot
  • Stainless steel AISI304 or AISI316
  • Standard length: 500 mm and 1000 mm
  • Standard brick sitting height: 50 mm, 70 mm or 105 mm
  • Load Class B125, C250 and D400
Products BrSL Side Revision Unit For V-channel X143270 - DX06-00125

ACO Brickslot Revision Element with side slot
  • Stainless steel AISI304 or AISI316
  • Standard length: 500mm
  • Standard brick sitting height: 50 mm, 70 mm or 105 mm
  • Load Class B125, C250 and D400

For more information send E-mail to info@aco.ae or get in contact with our Sales Manager in your region.

ACO Building Material, made in U.A.E.

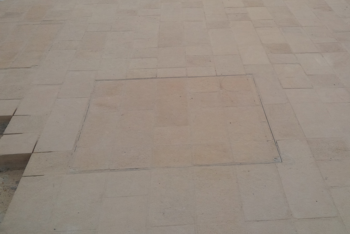

ACO Access Covers in stainless steel

Products Access Cover 500x500 136360 - DX09-00001

ACO Access Covers square or rectangular with 60mm infill

  • in stainless steel AISI304 or AISI316
  • Standard sizes 300mm, 400mm, 500mm, .... up to 1000mm
  • incl. locking devises and lifting tools
  • Load Class A15, B125, C250
Products Access Cover 600x800 137010 - DX09-00002

ACO Access Covers square or rectangular with 100mm infill

  • in stainless steel AISI304 or AISI316
  • Standard sizes 500mm, 600mm, 700mm, .... up to 1000mm
  • incl. locking devises and lifting tools
  • Load Class B125 and C250

For more information send E-mail to info@aco.ae or get in contact with our Sales Manager in your region.

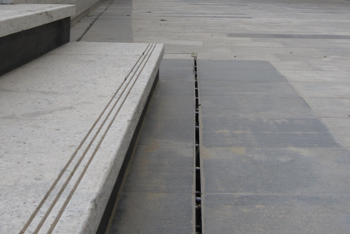

Installed products
