ACO Systems FZE

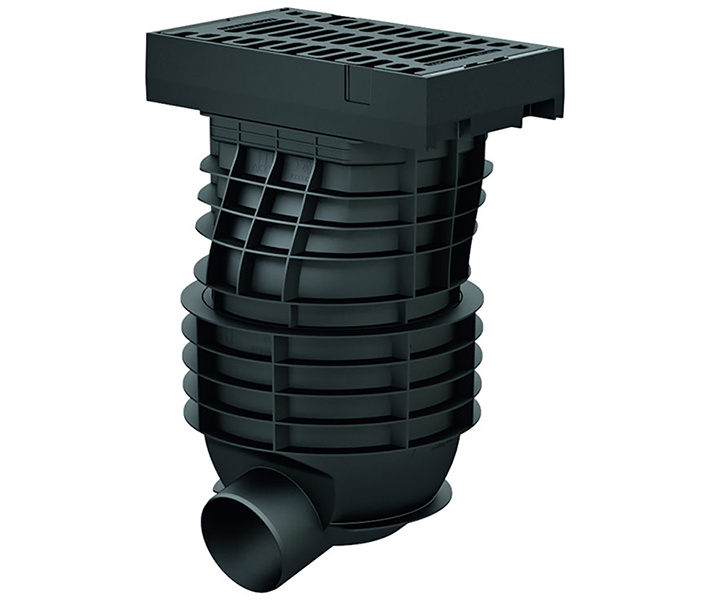

The ACO Combipoint PP system is the first system made of plastic that can be rotated, stretched or shortened telescopically, installed at an angle, and at the same time offering a number of advantages in design, installation and operation. The system includes street runoff, made of preformed plastic components and cast iron gratings to distribute the load.



ACO Combipoint

Road drainage with high hydraulic capacity:

  • Flat surface - the system allocates the dynamic load
  • Total adaptation of shaft body
  • Fast and easy installation thanks to the low weight
  • Secure bolt lock against vandalism
  • Load class D400, according DIN EN 124:2003







ACO Combipoint offers a number of advantages in spot drainage. The intelligent structure distributes the load on the surface of the roadway. The grating remains level with the asphalt level. The system is designed for a load class up to D400, in accordance with European Standard 124: 2003. The product has been tested for quality, durability and safety for which it is marked according to the standard. Also available with optional bolt lock.



Cast Iron Grating 300/500

Cast Iron Grating 500/500




Conus - upper part




Upper part without outlet

Upper part with outlet




Bottom part without outlet

Bottom part with outlet



For more information about road point drainage get in contact with our office or download the ACO CombiPoint Catalog.

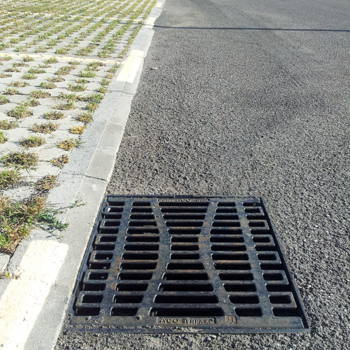

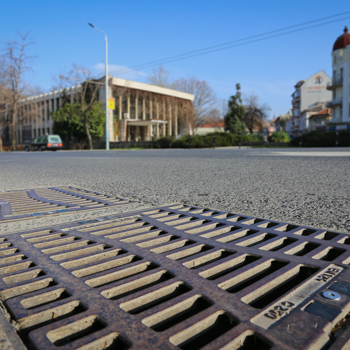

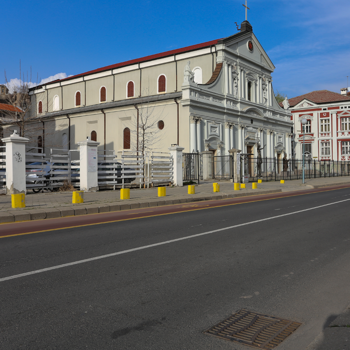

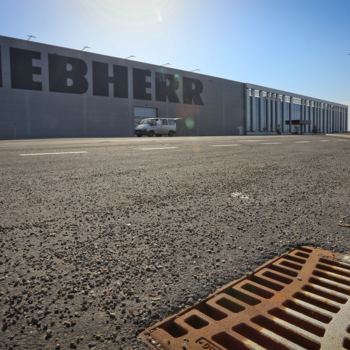

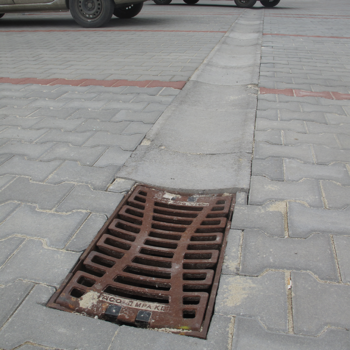

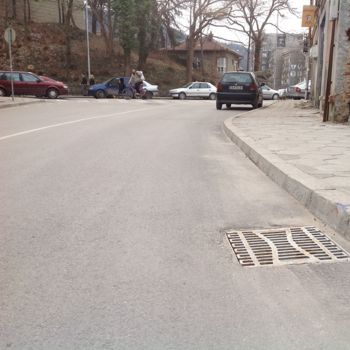

International References
